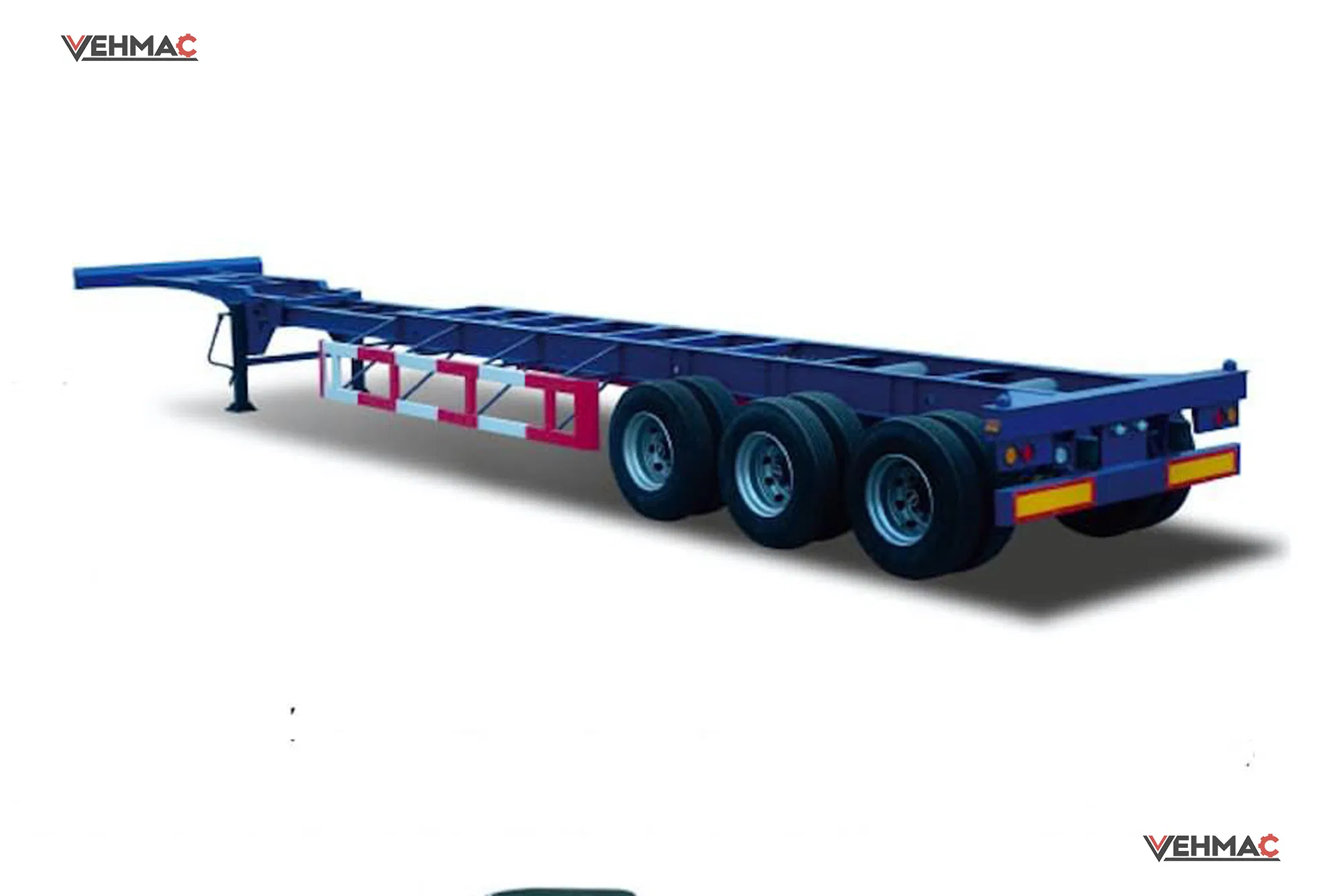

3 Axle 50t Heavy Load Freight Logistics Flatbed Chassis Semi-Trailer Truck

Product Description

Flatbed Semi-Trailer Truck

Flatbed Semi-Trailer Truck Overview

The Flatbed Semi-Trailer is designed for versatile cargo transport, providing a strong and reliable platform for heavy and oversized loads. Its durable steel frame and reinforced deck ensure stability and long service life, even under challenging conditions. Compatible with various tractor units, it allows easy loading and unloading of containers, machinery, or construction materials. The trailer's open deck design offers flexibility for different cargo sizes and shapes. With excellent road stability and compliance with international safety standards, it is an ideal solution for logistics, construction, and industrial transport.

Technical Specifications

Category Feature Details
Trailer Body Trailer Size 12500 * 2500 * 1500 mm
Capacity 55,000 kg
Longitudinal Beam 520 mm
I-beam Q345 16/8/18 mm
Floor 3 mm
Side frame 180 mm
Lock 12 sets (Container transport ready)
Running Gear Axle FUWA 13T * 3 Sets
Suspension Mechanical suspension system
Leaf Spring 10 * 16 * 90
Tires 12R22.5-18PR * 13 (Golden Crown)
Landing Gear JOST E100
Kingpin JOST 2" Bolton type
Brake System 2 lines air brake with WABCO Relay valve
Lights 24V LED system

Key Applications

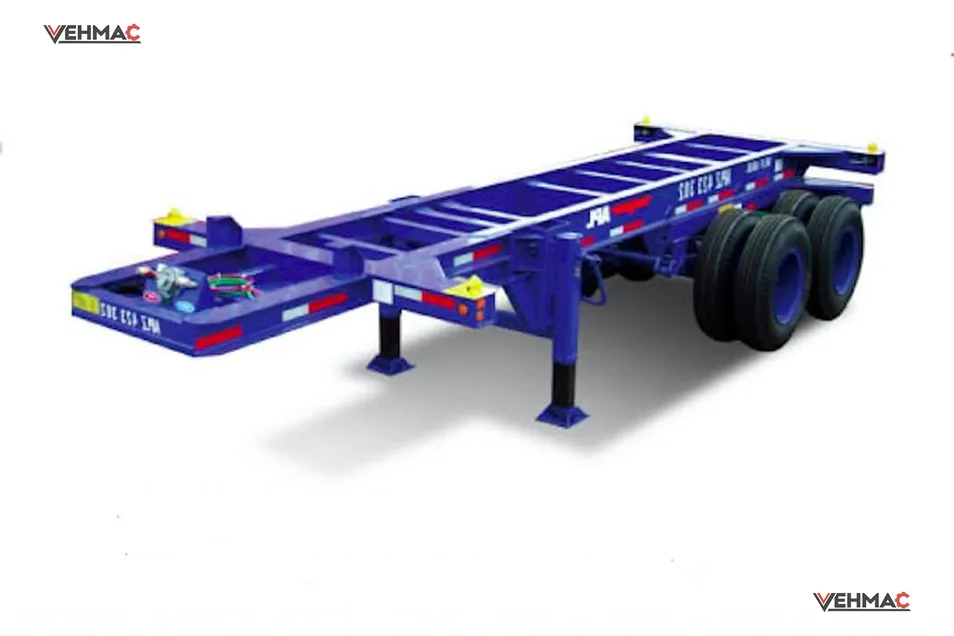

Trailer Application
  • Container transportation for ports and terminals
  • Construction materials hauling (steel, pipes, beams)
  • Heavy machinery and equipment transport
  • Oversized and irregular cargo delivery
  • Industrial and factory logistics
  • Agricultural machinery transportation
📷

Product Display

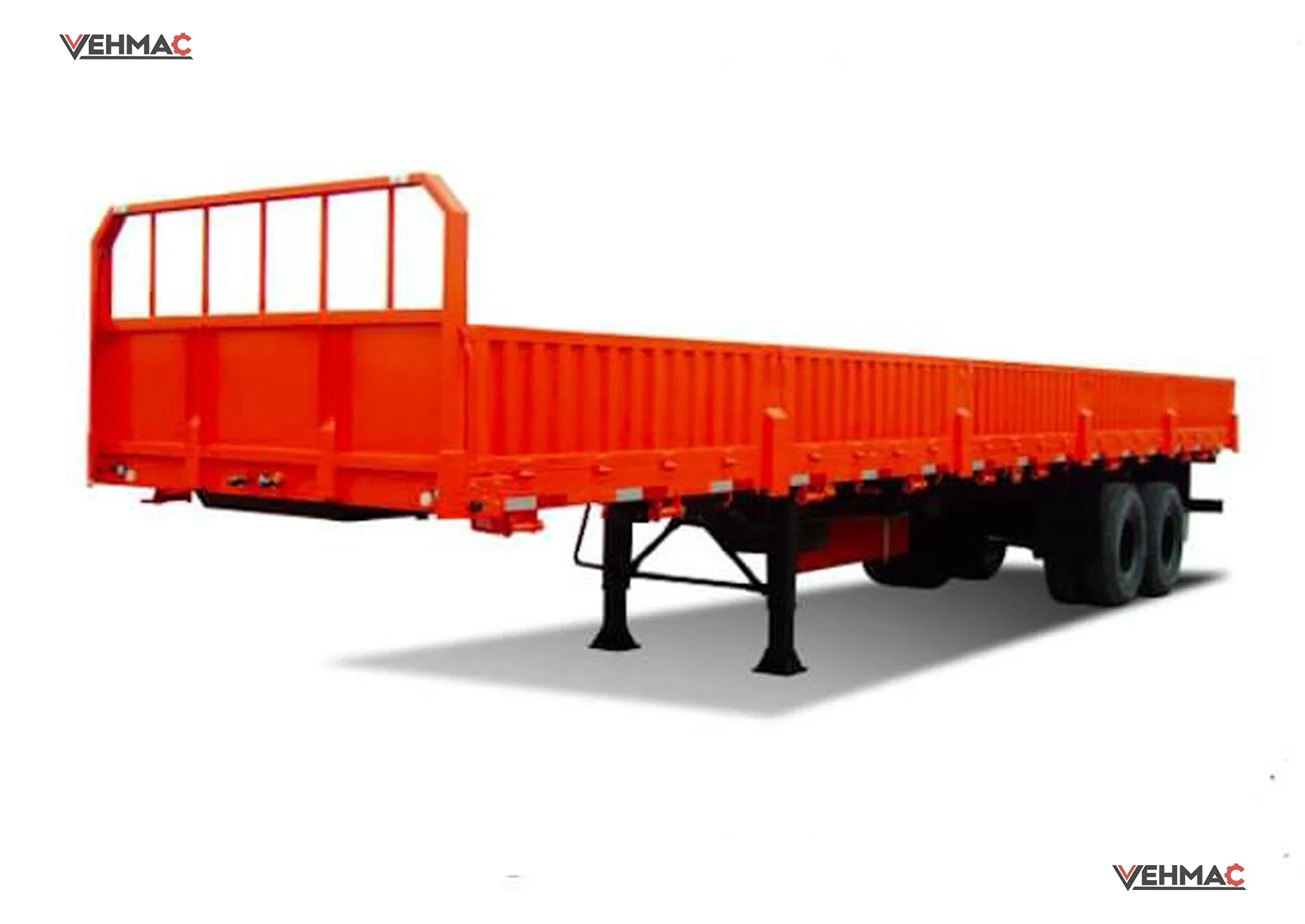

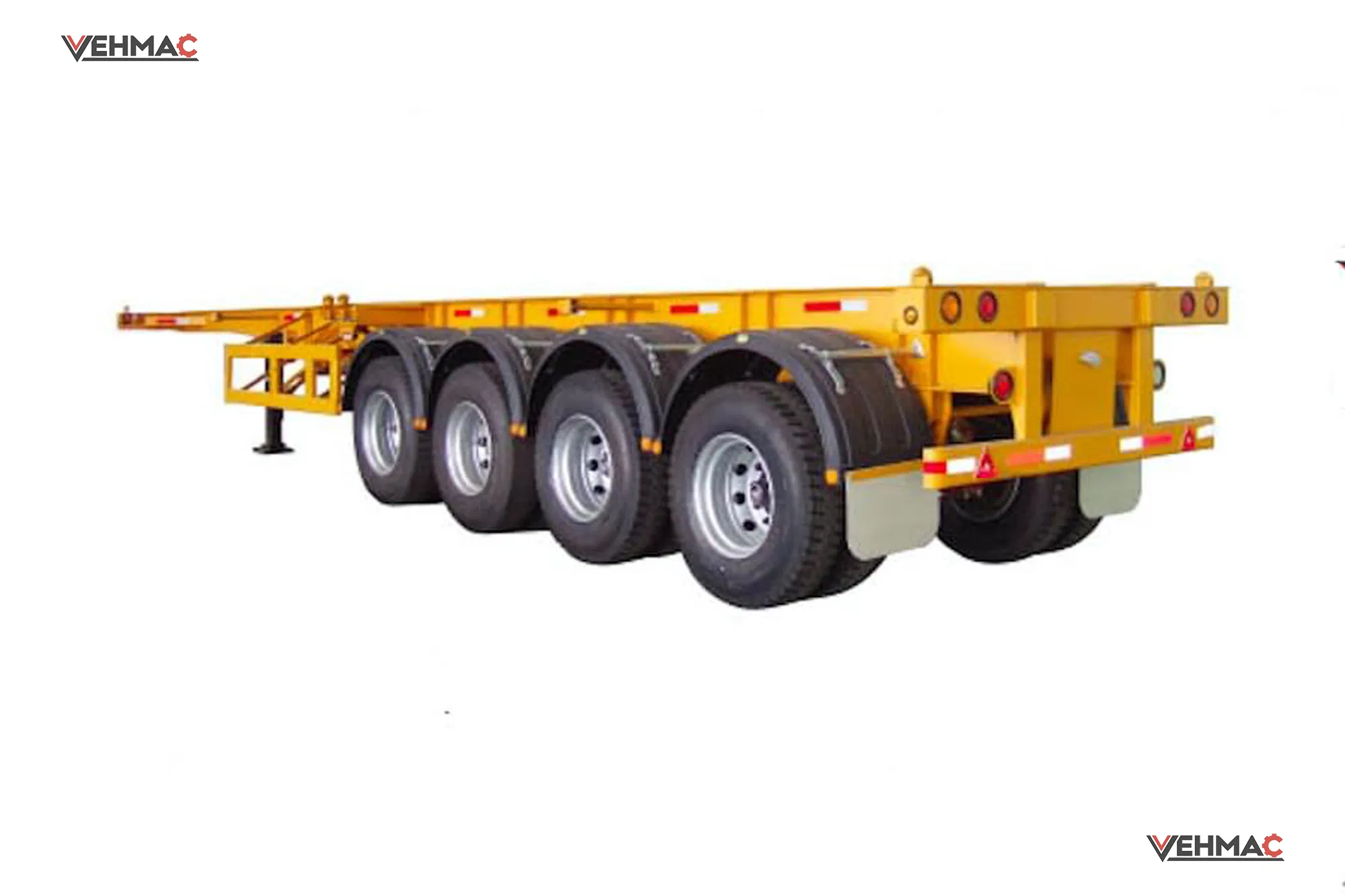

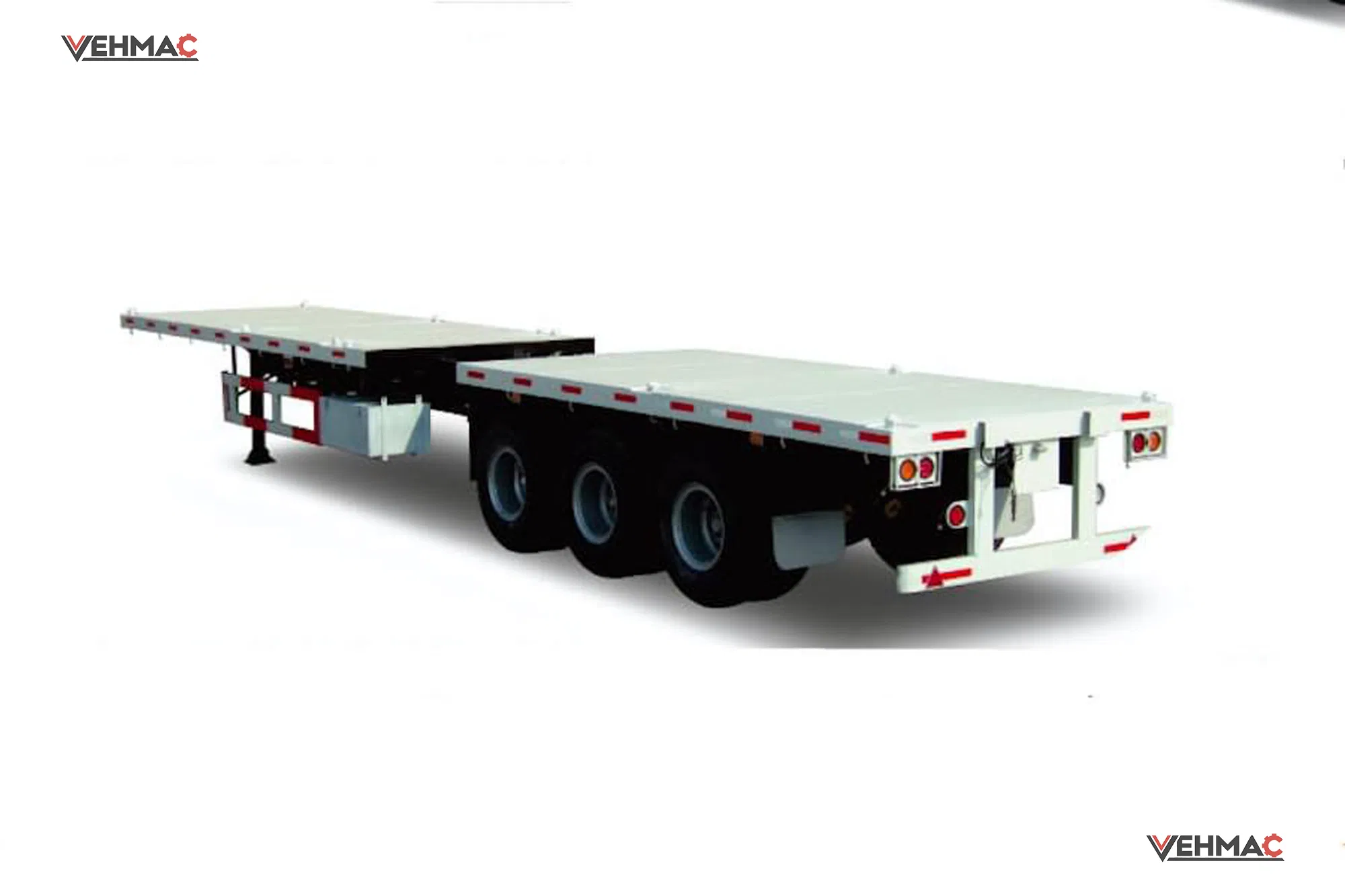

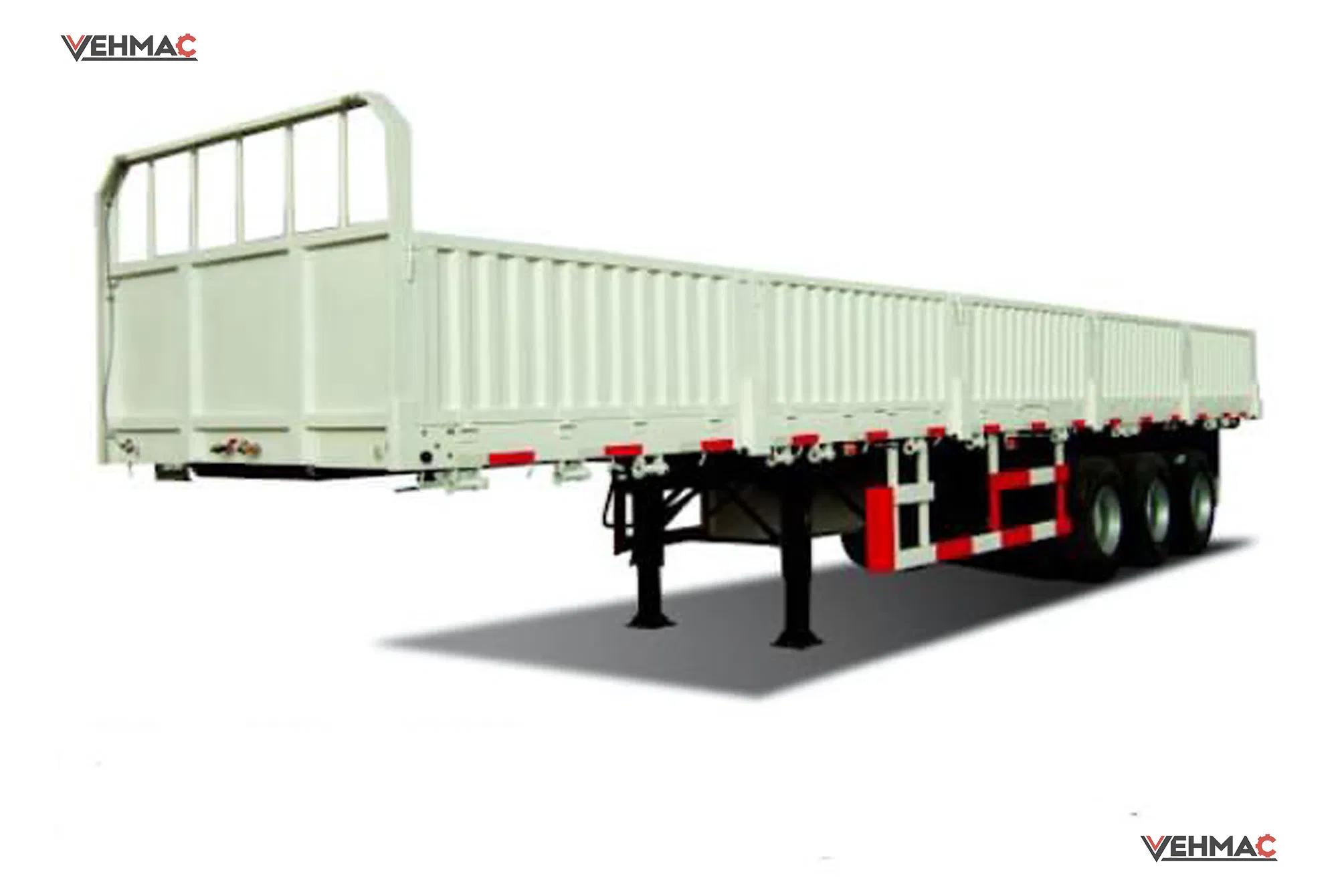

Trailer Detail 1 Trailer Detail 2 Trailer Detail 3
🏗

Factory & Logistics

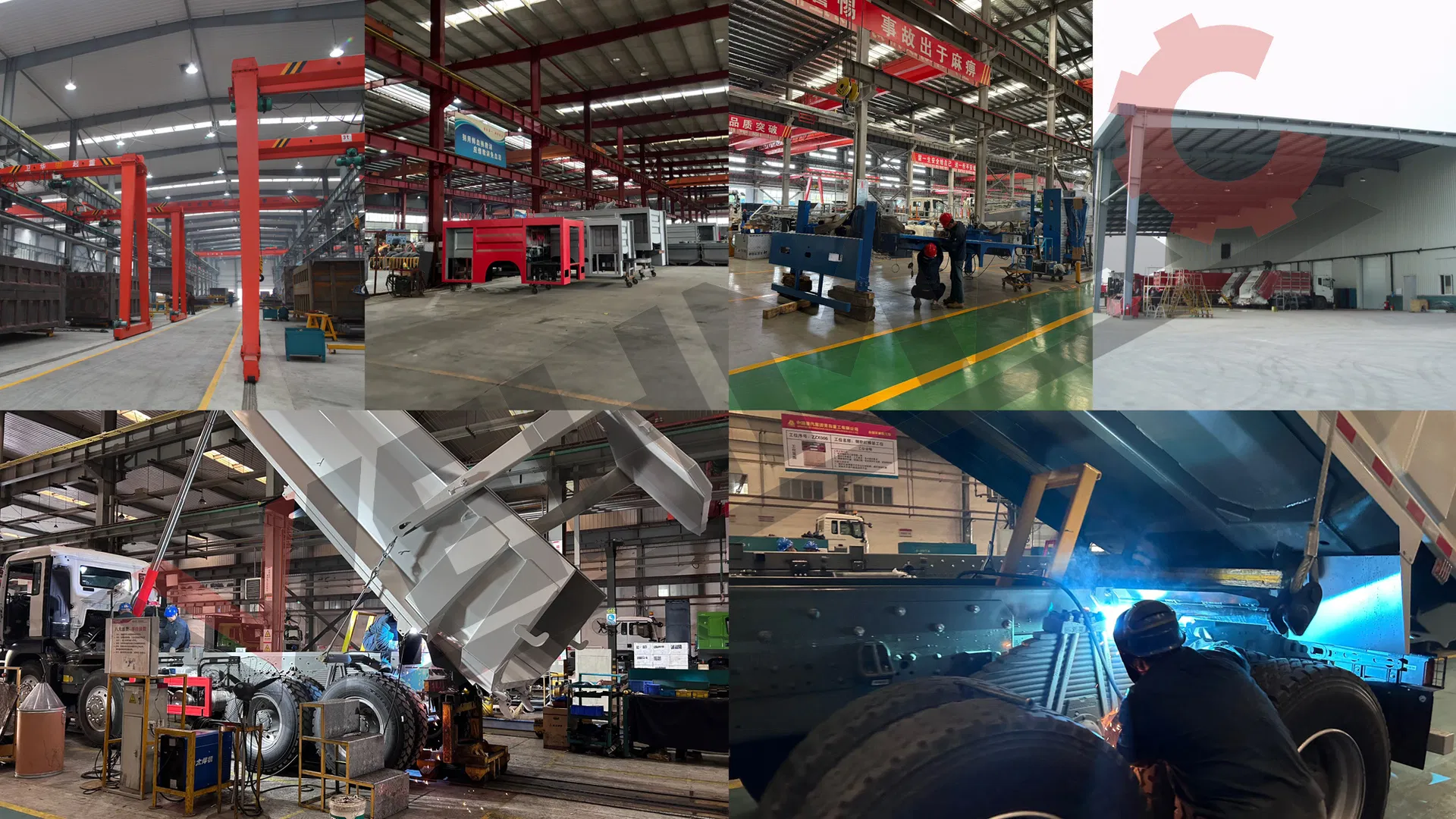

Factory Show

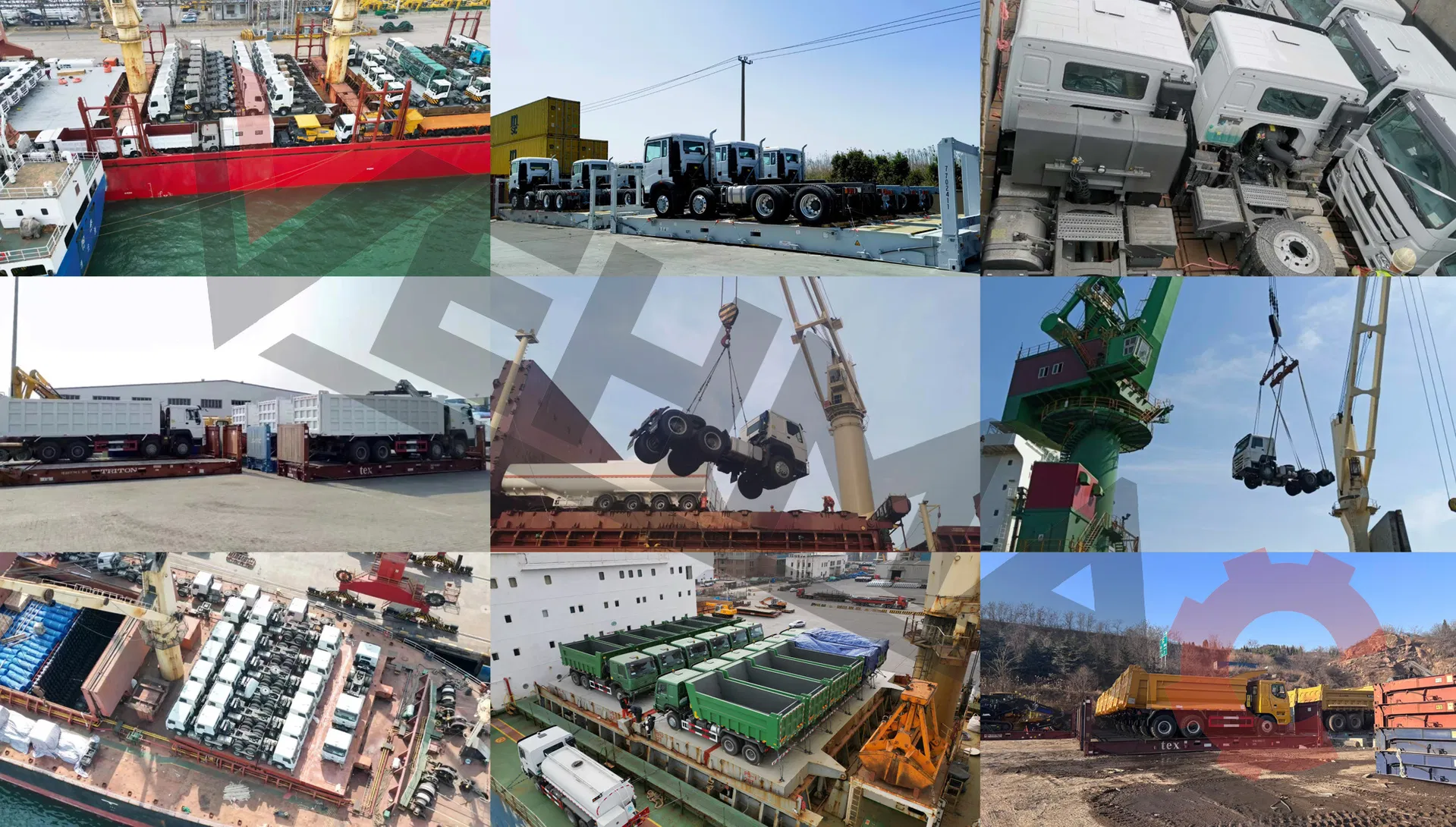

Packing and Delivery
Customer Visit
?

Frequently Asked Questions

Q1: What is the maximum load capacity of this flatbed trailer?
The trailer is designed for heavy-duty freight with a maximum capacity of 55,000 kg, supported by a high-strength Q345 steel I-beam structure.
Q2: Can this trailer transport standard ISO containers?
Yes, the trailer is equipped with 12 sets of specialized container locks, making it suitable for transporting 20ft and 40ft containers.
Q3: What brand of axles and braking systems are used?
We use high-quality FUWA 13T axles and a WABCO relay valve braking system to ensure superior road stability and safety.
Q4: Are the trailers customizable for specific regional needs?
Yes, we offer customization options for load capacity, axle configurations, tire specifications, and floor thickness to meet different industrial requirements.
Q5: How do you ensure the quality of the trailer before delivery?
Each unit undergoes strict quality inspections, including structural stress tests and braking system checks, complying with international export standards.
Q6: What type of lighting and electrical system is installed?
The trailer features a 24V LED lighting system, which provides better visibility and durability compared to standard bulbs.
