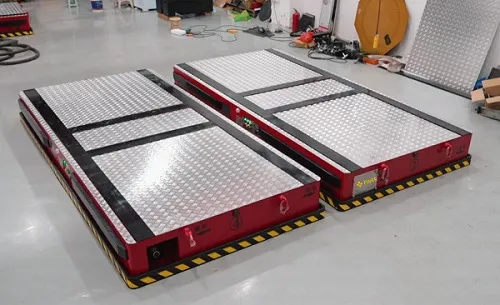

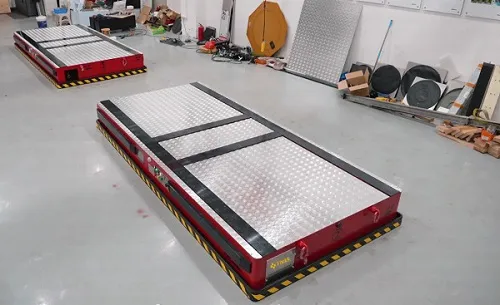

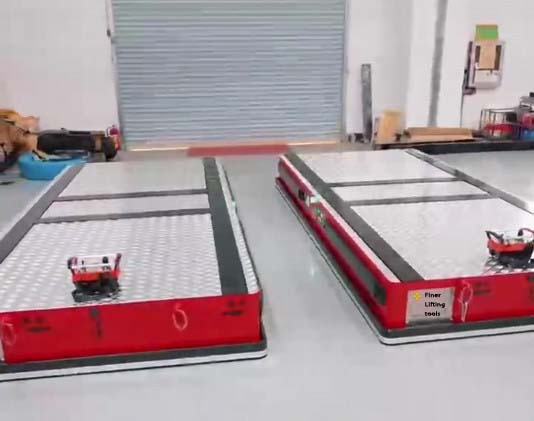

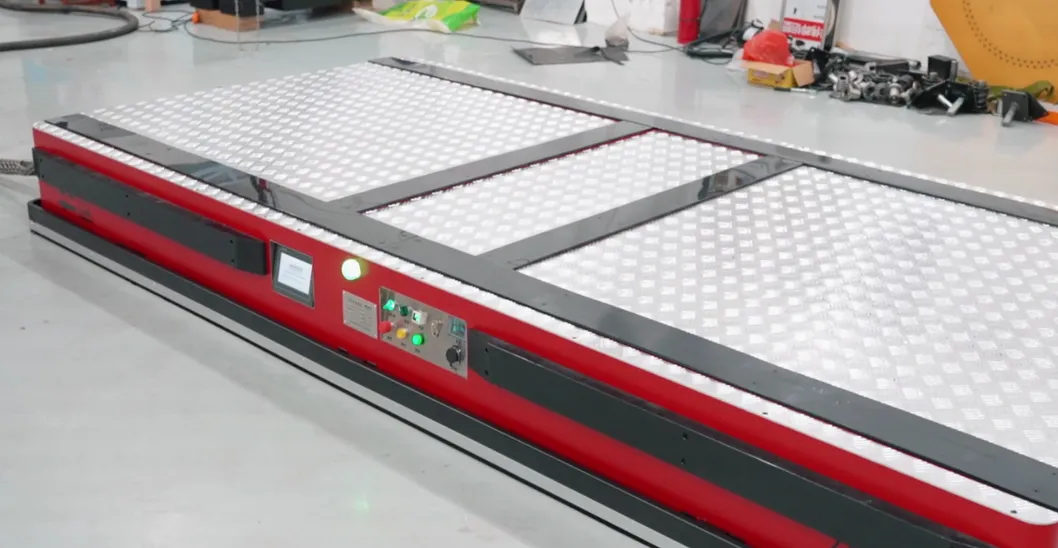

Equipped with six steering modes, allowing for omnidirectional movement. This means that the vehicles can move in any direction, including sideways and diagonally, making it an easy air transport platform to move around obstacles and tight corners.
The compact size and footprint make them portable and easy to relocate. They do not require permanent installation and can be utilized in any facility with compressed air, maximizing floor space efficiency.
Low profile transport ensures stability and safety. Eliminates risky rigging operations and provides exceptional operator visibility, reducing the risk of accidents.
Designed to distribute loads over standard floors without additional site work, minimizing damage to expensive epoxy-coated floors and reducing maintenance costs.

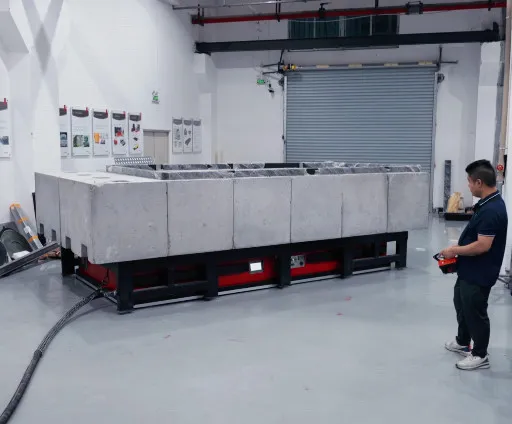

Air Cushion Vehicle Systems are globally recognized for engineering excellence. These systems comply with ISO 9001 standards and CE requirements. Utilizing cutting-edge Aero-Caster technology and specialized drive systems, operators can move multi-ton loads (up to 200+ tons) with precision and ease.

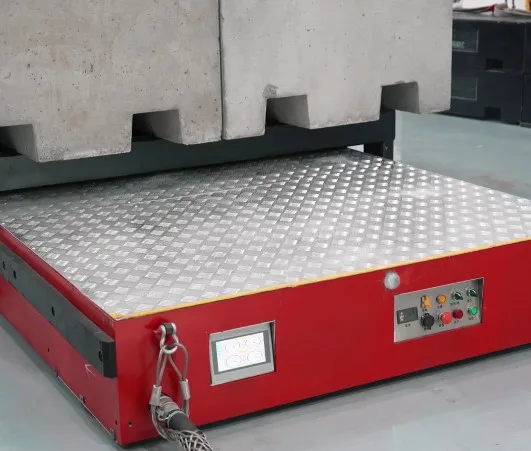

- User-friendly operation for precise control.
- Strategically placed emergency stop switches.
- Independent safety relay integrated into circuits.
- Audible and visual alarms for operation awareness.

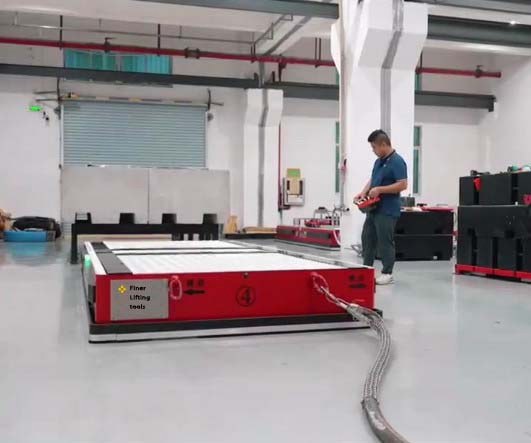

- 360-degree radio remote control for maximum visibility.
- Low height load transfer to eliminate overhead hazards.

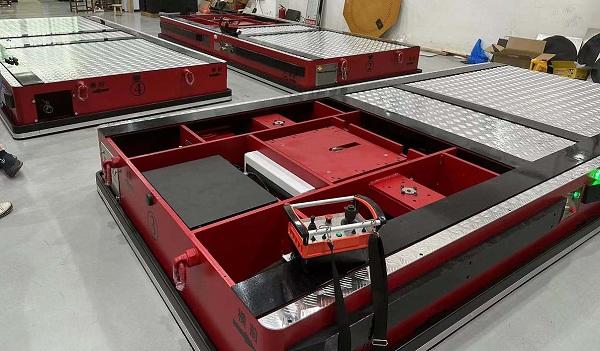

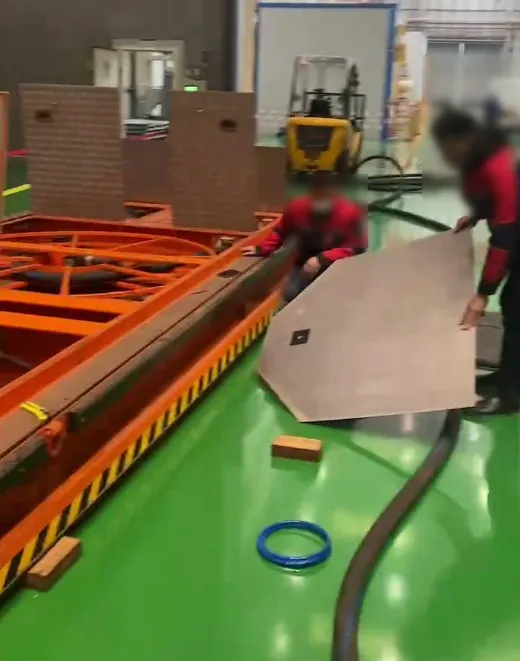

Equipped with a sturdy welded steel frame, ASME B30.1 compliant Aero-Casters, and a state-of-the-art PLC control system. Large HMI touchscreens provide advanced diagnostics and maintenance monitoring.

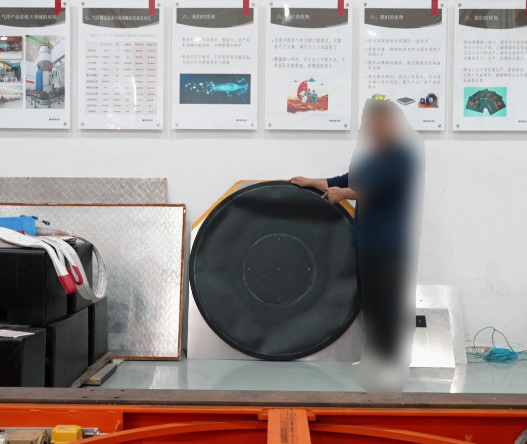

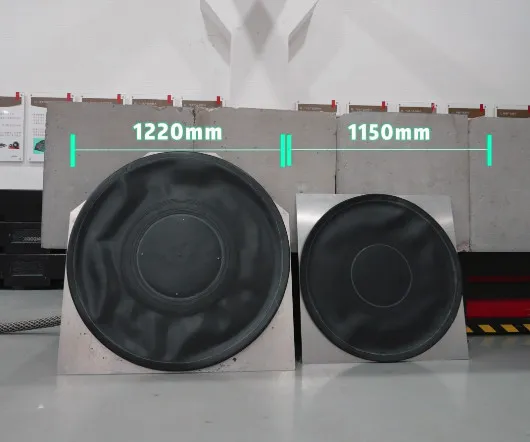

| Serial No. | Model | DELU Model | MAX Capacity (KG) | Max Air Pressure (bar) | Plate Size (mm) | Thickness (mm) | Air Intake |
|---|---|---|---|---|---|---|---|
| 1 | GB450 | 052 LE 4-45 | 5200 | 4.5 | 450 | 15 | 3/4" |
| 2 | GB540 | 072 LE 4-53 | 7200 | 4.5 | 540 | 18 | 3/4" |
| 3 | GB686 | 120 LE 4-68 | 12000 | 4.5 | 686 | 20 | 3/4" |
| 4 | GB750 | 145 LE 4-75 | 14500 | 4.5 | 750 | 25 | 3/4" |
| 5 | GB1020 | 280 LE 4-102 | 28000 | 4.5 | 1020 | 25 | 3/4" |
| 6 | GB1150 | 360 LE 4-115 | 36000 | 4.5 | 1150 | 25 | 3/4" |
| 7 | GB1220 | 400 LE 4-122 | 40000 | 4.5 | 1220 | 25 | 3/4" |
