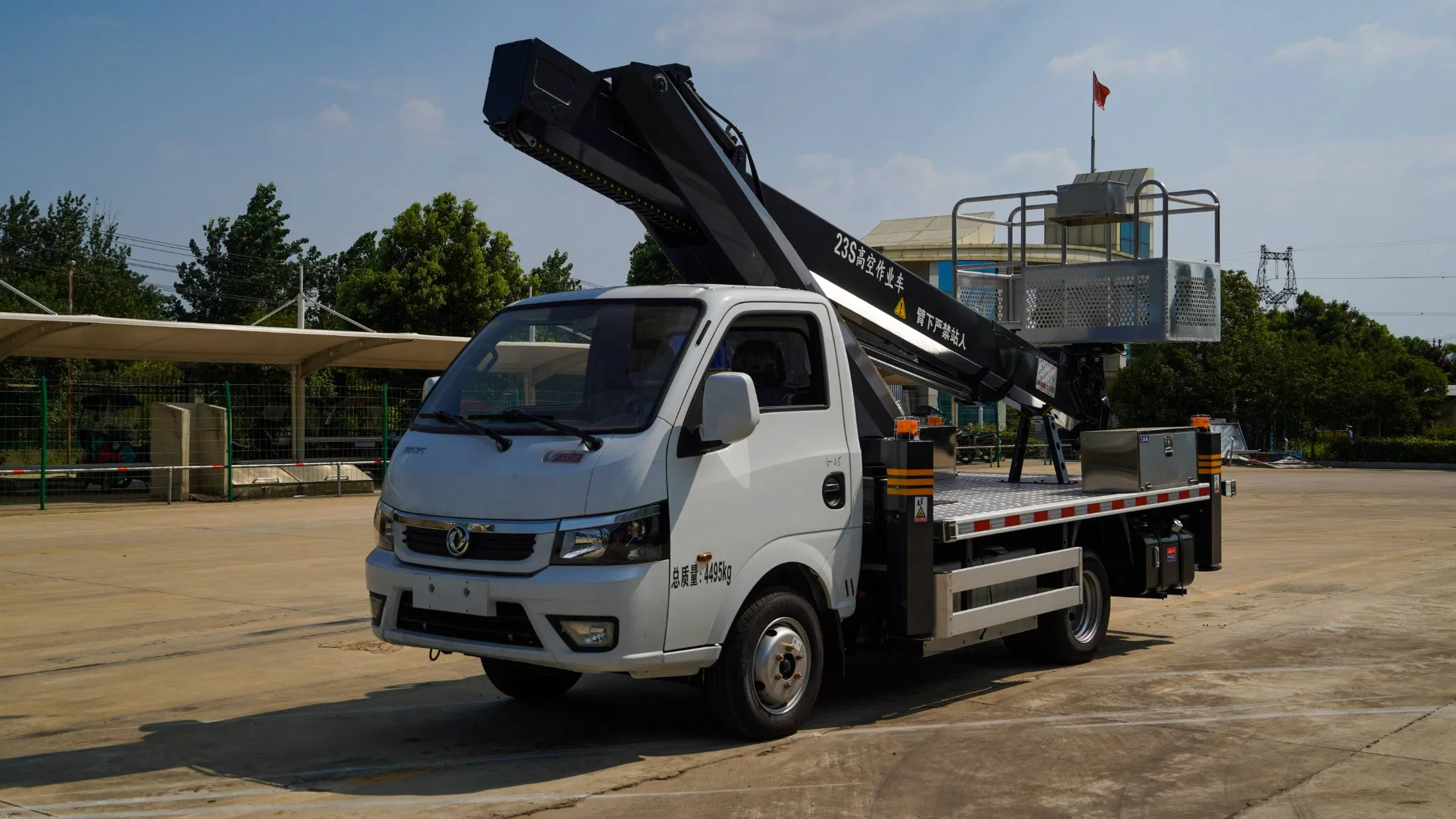

Dongfeng 4 × 2 High-End Intelligent 23 Meter Pure Electric New Energy Aerial Work Truck

Send Inquiry

Product Description

Product Specifications

Project		Parameters	Notes
Chassis Announcement Number		EQ1041TACEV3	/
Quality Parameters	Maximum total mass (kg)	4495	/
	Curb weight (kg)	4365	/
	Payload Capacity (kg)	/	/
Vehicle Dimensions	Overall dimensions (mm)	5998/2050,2090/3200,3050	/
Power Battery	Battery type	Lithium iron phosphate	/
	Battery level (kWh)	61.824	/
	Nominal voltage (V)	386.4	/
	Nominal capacity (Ah)	160	/
	Battery energy density (w.h/kg)	142.18	/
Electric Motor	Type	Permanent Magnet Synchronous Motor	/
	Peak power (kw)	110	/
	Peak torque (N.m)	318	/
Performance	Top speed (km/h)	90	/
	Range (km)	265	Constant velocity method
	Charging time (h)	1.5	/
Working Parameters	Maximum working height (m)	23	/
	Maximum working span (m)	11	/
	Platform payload (KG)	200	/

Main Characteristics & Advantages

📏

Extreme Reach: The maximum working height can reach up to 23 meters with a 4-section full chain telescopic boom structure.

🏗️

Heavy Duty Platform: Oversized homework platform carries 200KG (up to 3 people) with 360° rotation capability.

⚡

Pure Electric Power: High-end intelligent new energy chassis, featuring fast charging in just 1.5 hours.

🛡️

Safety First: Equipped with imported load-sensitive proportional valves, CAN bus control, and wireless remote control.

💻

Intelligent Monitoring: 5-inch LCD screen for real-time detection of arm length, angle, and operation height.

⚓

Stability: Front V-shaped and rear H-shaped support legs provide superior lateral span and "soft leg" protection.

Frequently Asked Questions

What is the typical lead time for this aerial work truck?

Normally it will take 20-45 working days after receiving the down payment.

Can the vehicle color be customized to our requirements?

Yes, while our trucks come in standard colors, we can customize the color based on your specific requests.

What are the available payment terms?

We prefer T/T (30%-50% as deposit, balance before shipment), though L/C is also acceptable and negotiable.

How is the product quality guaranteed?

All spare parts are sourced from original manufacturers, ensuring 100% quality guarantee for the entire vehicle system.

Do you provide technical support and spare parts?

Yes, we have a professional spare parts department and can arrange engineers to provide assistance for complex technical issues.
