Basic Specifications
| Model NO. | HBG1 |
Type | Semi-Trailer |
| Load Capacity | 100t-300t |
Certification | ISO9001, CCC, ISO/TS16949 |
| Wheel Base | 1550mm |
Tread | 1820mm |
| Grade | Heavy Duty |
Suspension | Hydro-Pneumatic Suspension |
| Axle Number | 12 Lines 24 Axis |
Tire Number | 96 PCS |
| Material | High Strength Steel |
Wheel Angle | 55° |
| Axis Load Weight | 16-45t |
Engine | Kohler |
Product Description

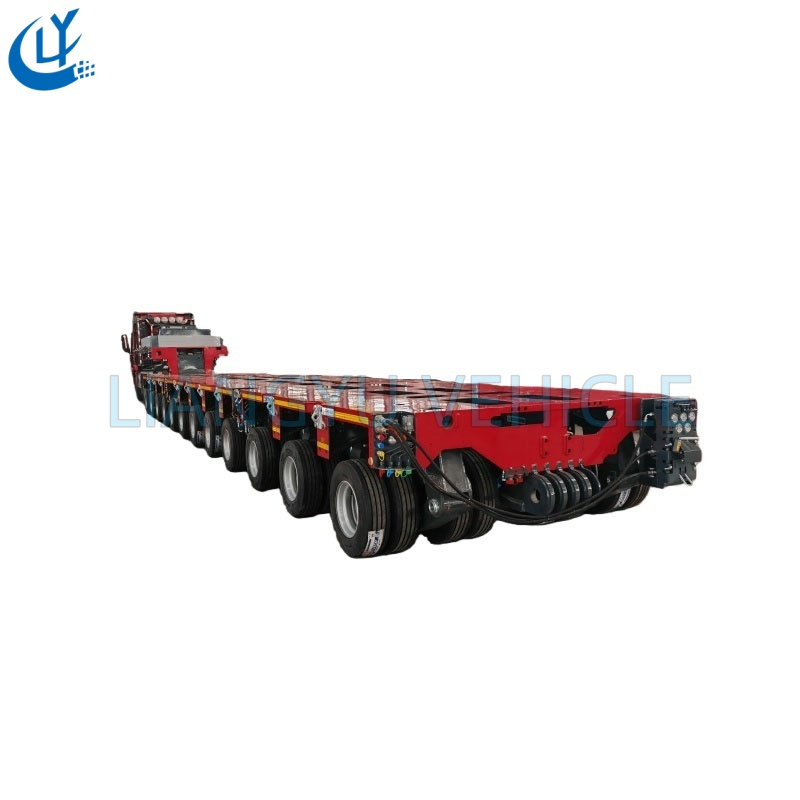

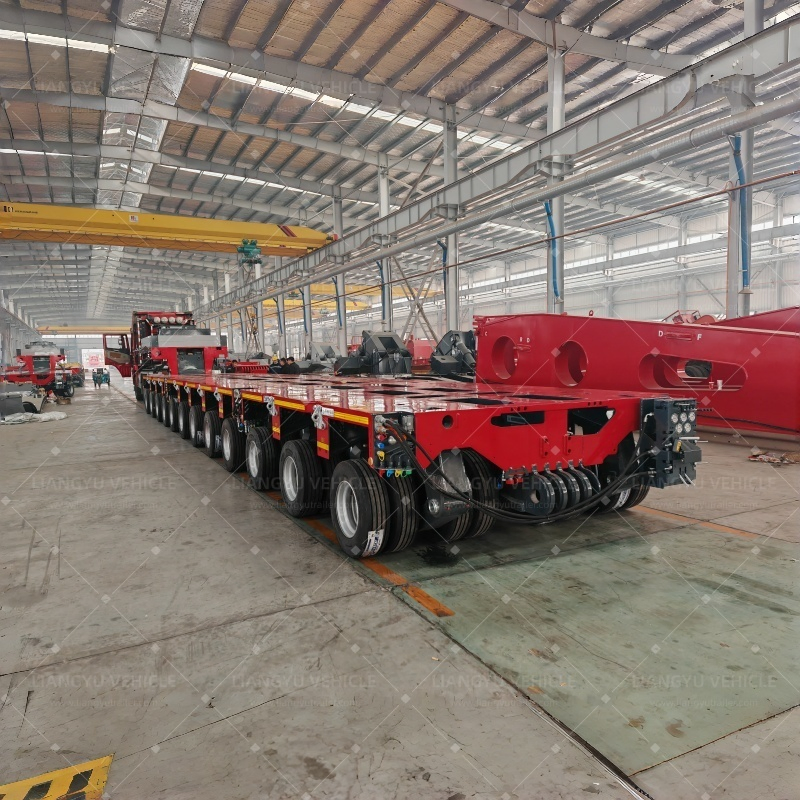

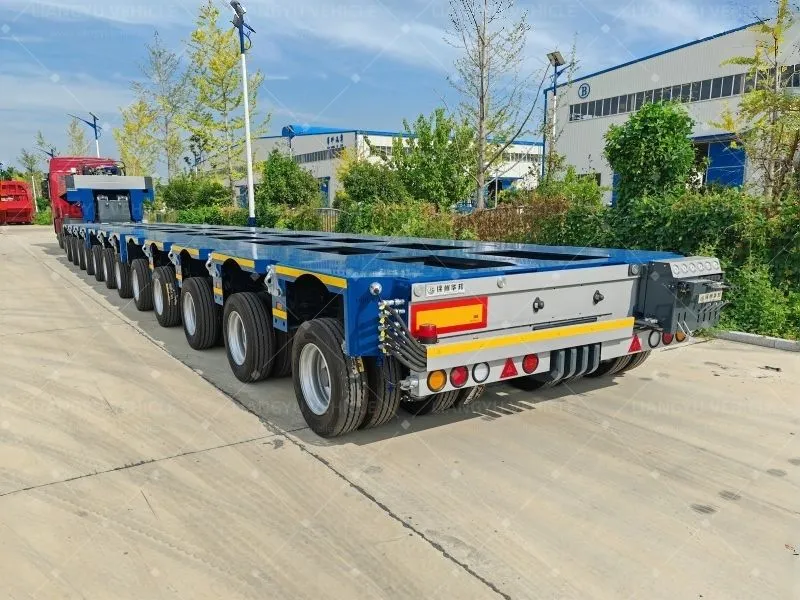

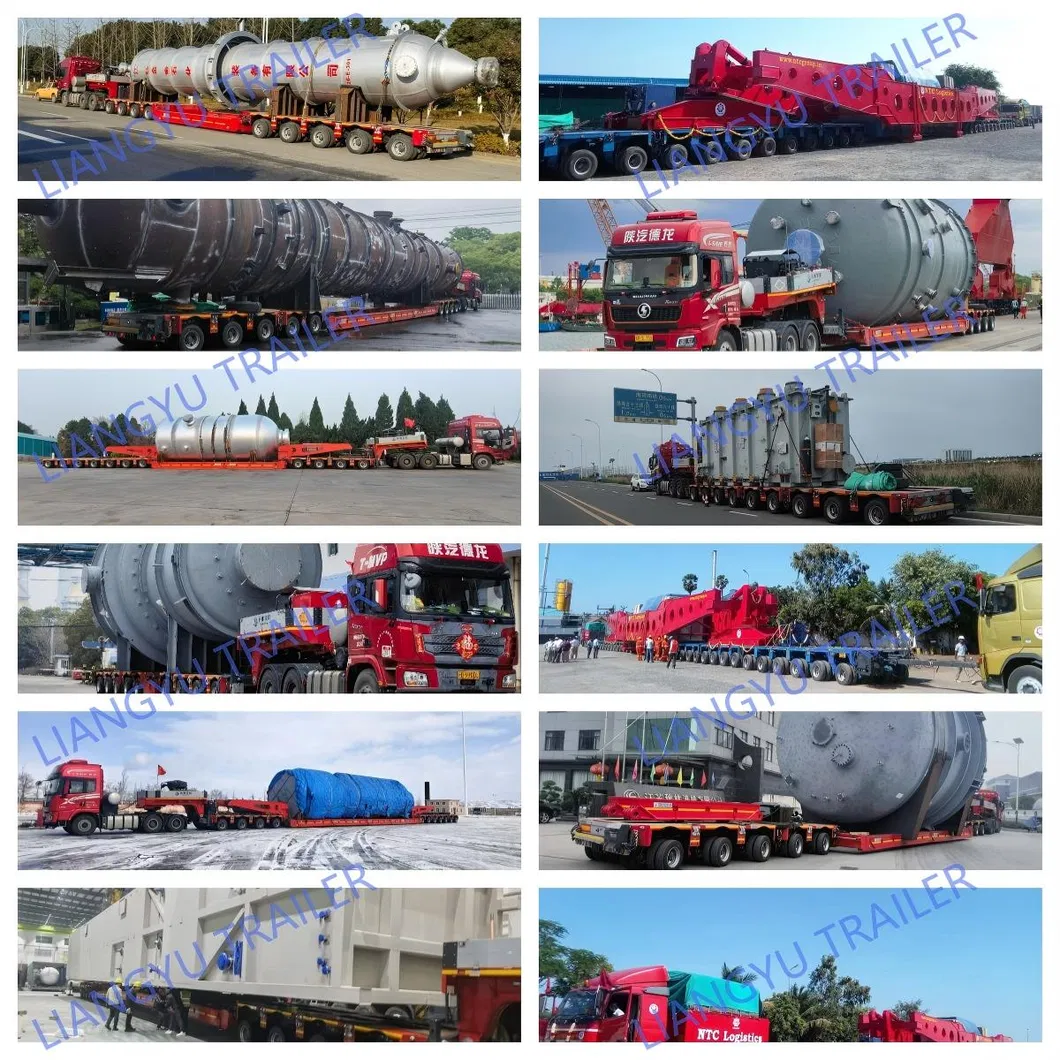

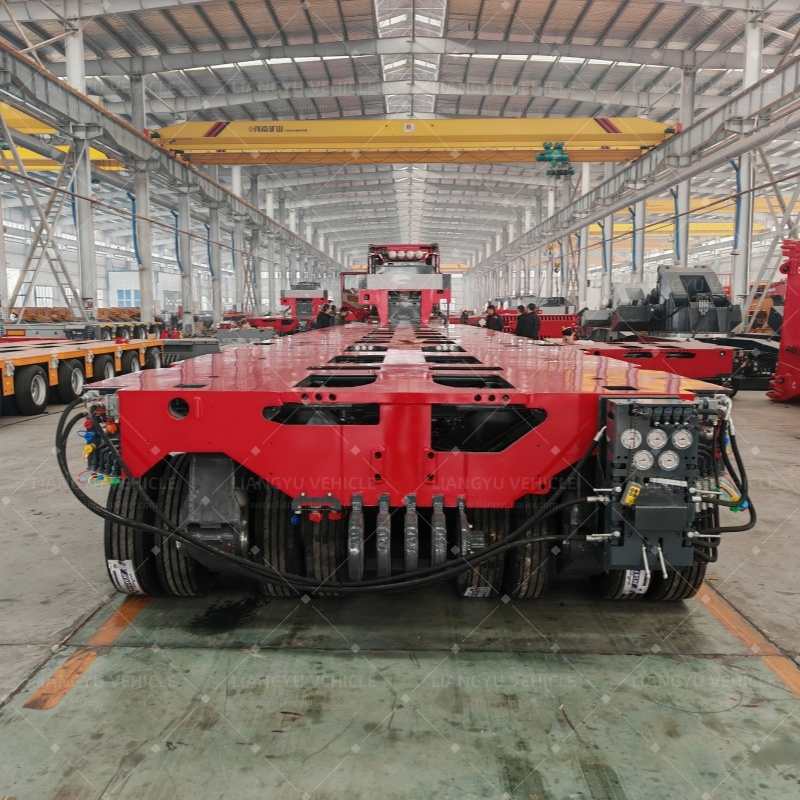

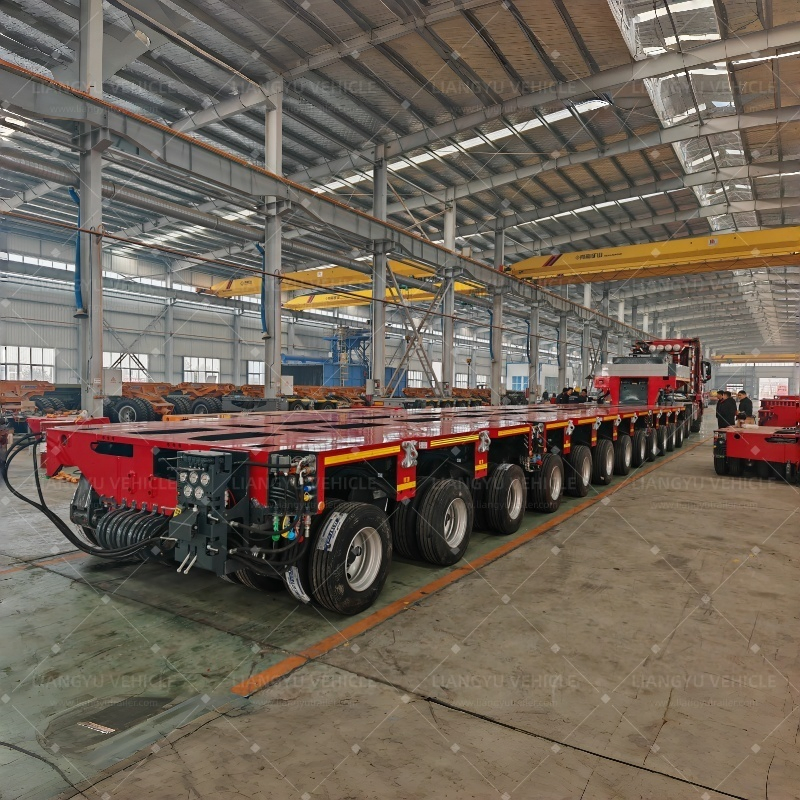

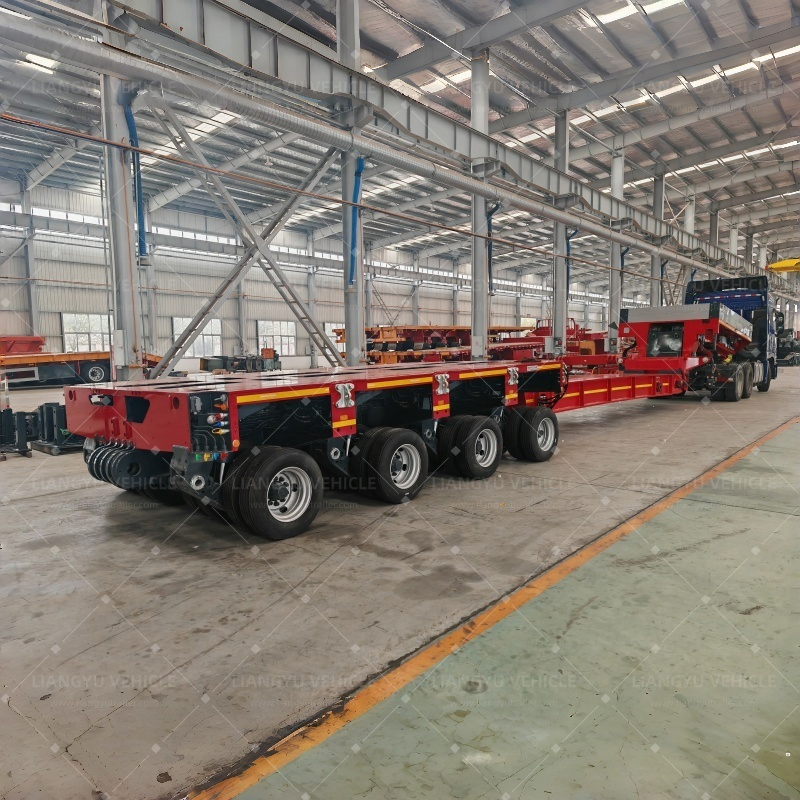

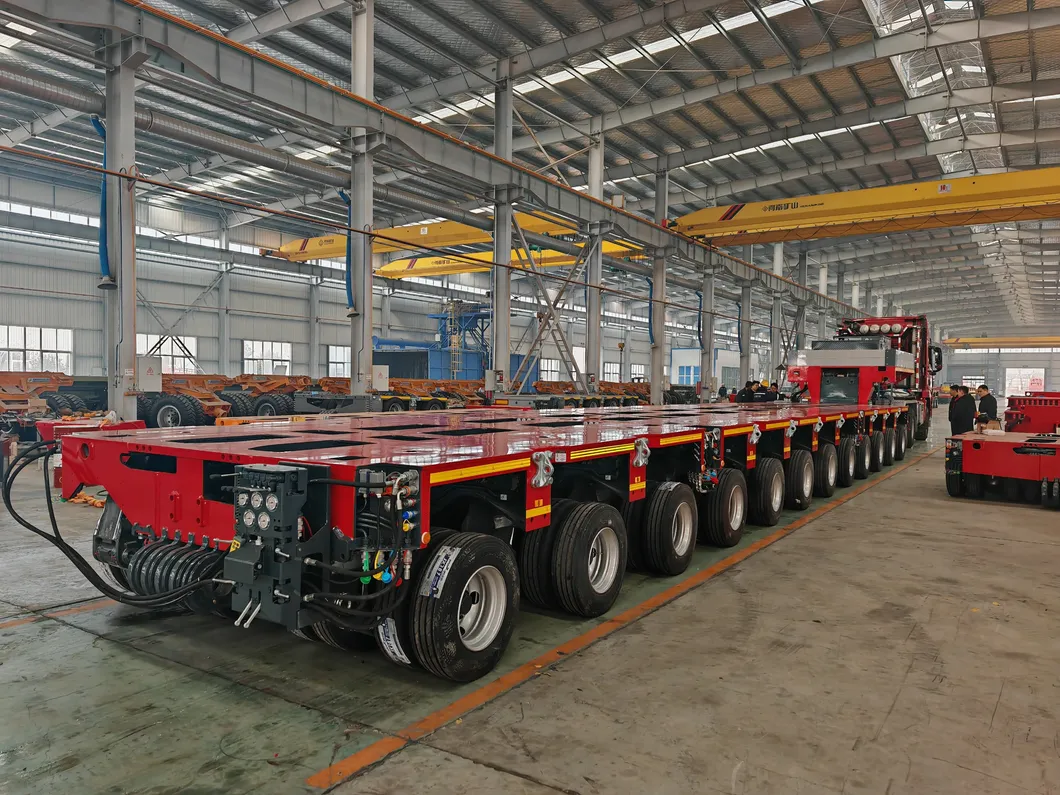

The hydraulic modular trailer is a high-performance heavy-haul transportation vehicle designed for moving oversized, overweight, and ultra-long cargo such as large-scale engineering machinery, wind power equipment, bridge segments, and petrochemical modules. Composed of multiple independent modular units, it can be flexibly combined horizontally and vertically according to the size and weight of the cargo. Its core system relies on hydraulic technology to achieve functions like height adjustment, axle load balancing, and synchronous steering, ensuring safe and stable transportation of super-heavy loads in complex road conditions.
Key Product Features
Flexible Modular Combination
Multiple trailer units can be quickly spliced into different widths and lengths to match cargo of various dimensions.

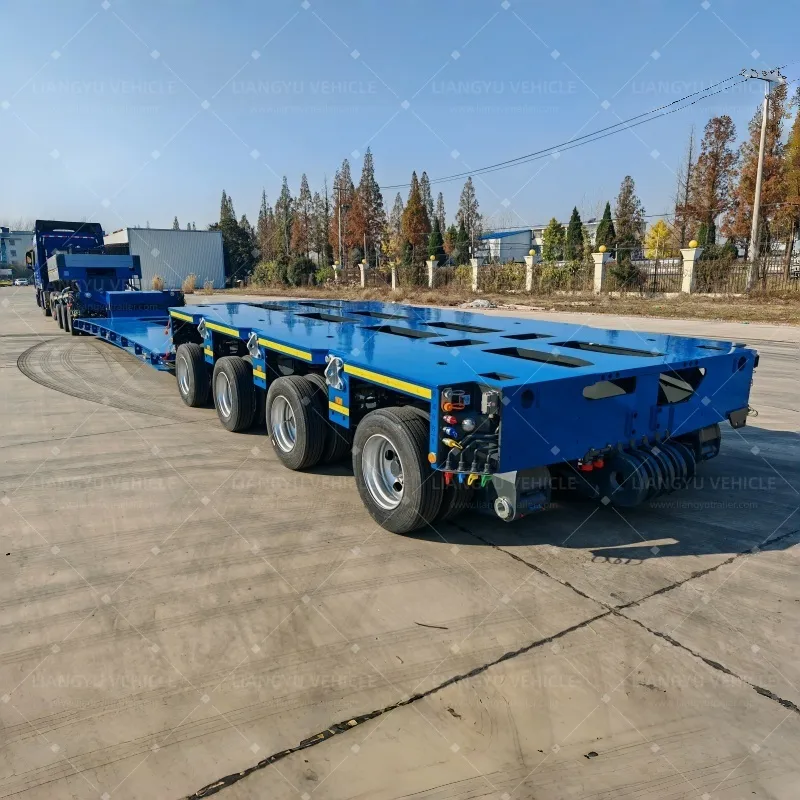

Precise Hydraulic Control
Equipped with an advanced hydraulic lifting system to adjust platform height precisely for different loading conditions.

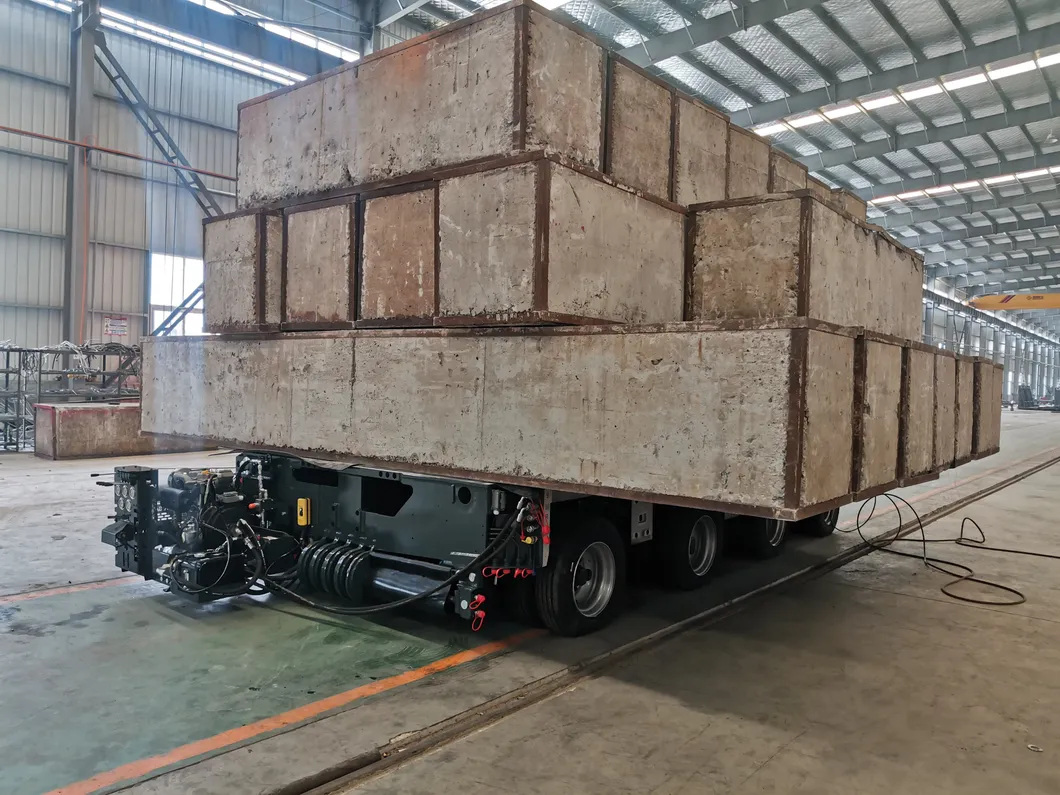

Super Load-Bearing Capacity
Reinforced frame design allows a single unit load capacity of hundreds of tons, and thousands in combination.
Intelligent Synchronous Steering
Supports multiple modes (front, rear, crab) to maneuver through narrow roads and sharp bends.
Technical Parameters
| Parameter Name | Specification Details |
|---|
| Wheel Track | 735/1820mm |
| Tyre Qty | 8 pcs per axis |
| Tyre Spec | 215/75R17.5 |
| Cargo Bed Width | 2990mm |
| Cargo Platform Height | 1070mm (Adjustable) |

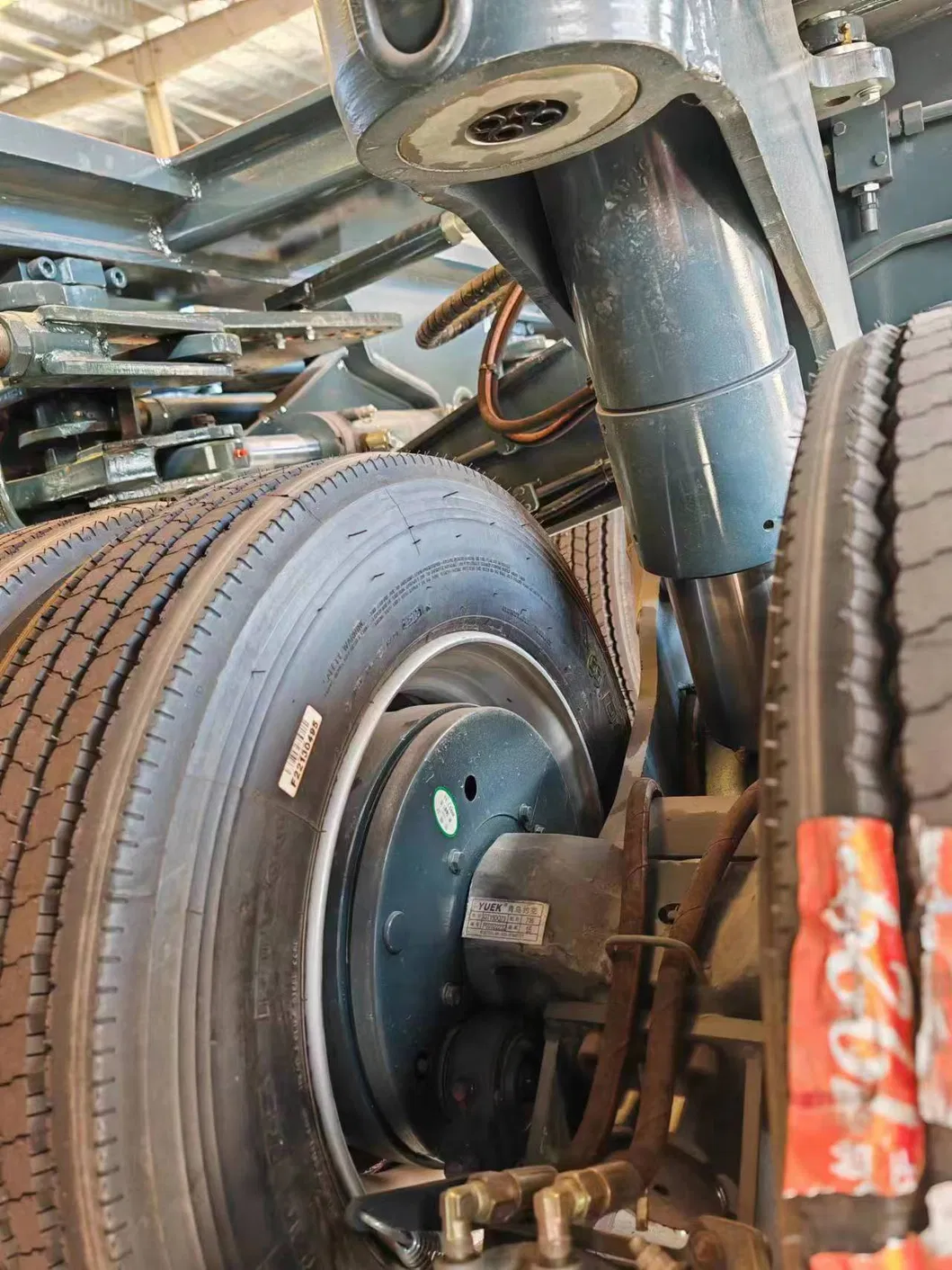

| Suspension Travel | ±300mm |
| Steering Mechanism | All-wheel hydraulic traction steering |
| Frame Material | Q550D High Strength Steel |
| Effective Load per Axis | 22.5 tons (at 18km/h) |
Premium Components List
| Accessory Name | Brand / Standard |
|---|
| Tires | Double-Coin / Giti |
| Steel Ring | Zhengxing |
| Axle | York |
| Oil Cylinder | Hengli |
| Quick Connector | Faster |
| Multi-way Valve | Bondioli & Pavesi |
| Hydraulic Hose | Aeroquip |
Our Core Advantages
1
Independent R&D combining global advanced hydraulic combined trailer technologies for a user-friendly experience.
2
Frame main beam welded with Q550D extra-thick steel plate for high strength and zero deformation.
3
Gantry milling for frame splicing surfaces ensuring zero-gap precision.
4
Integrated rear design for taillights and operation boxes, providing beauty and protection.
5
CNC automatic bending for all pipelines ensuring total consistency.
6
Optimized steering system to eliminate dead points and increase accuracy.
7

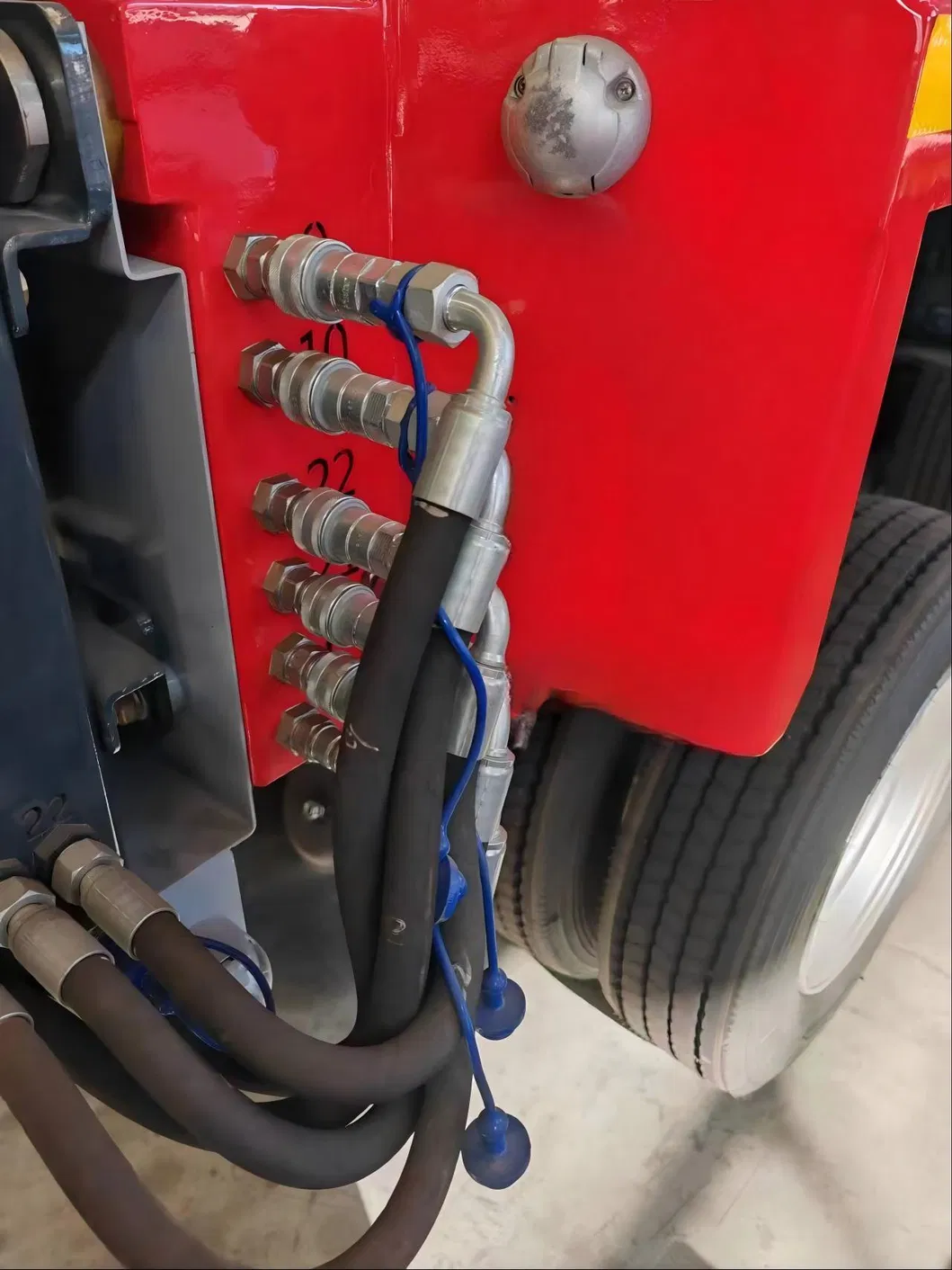

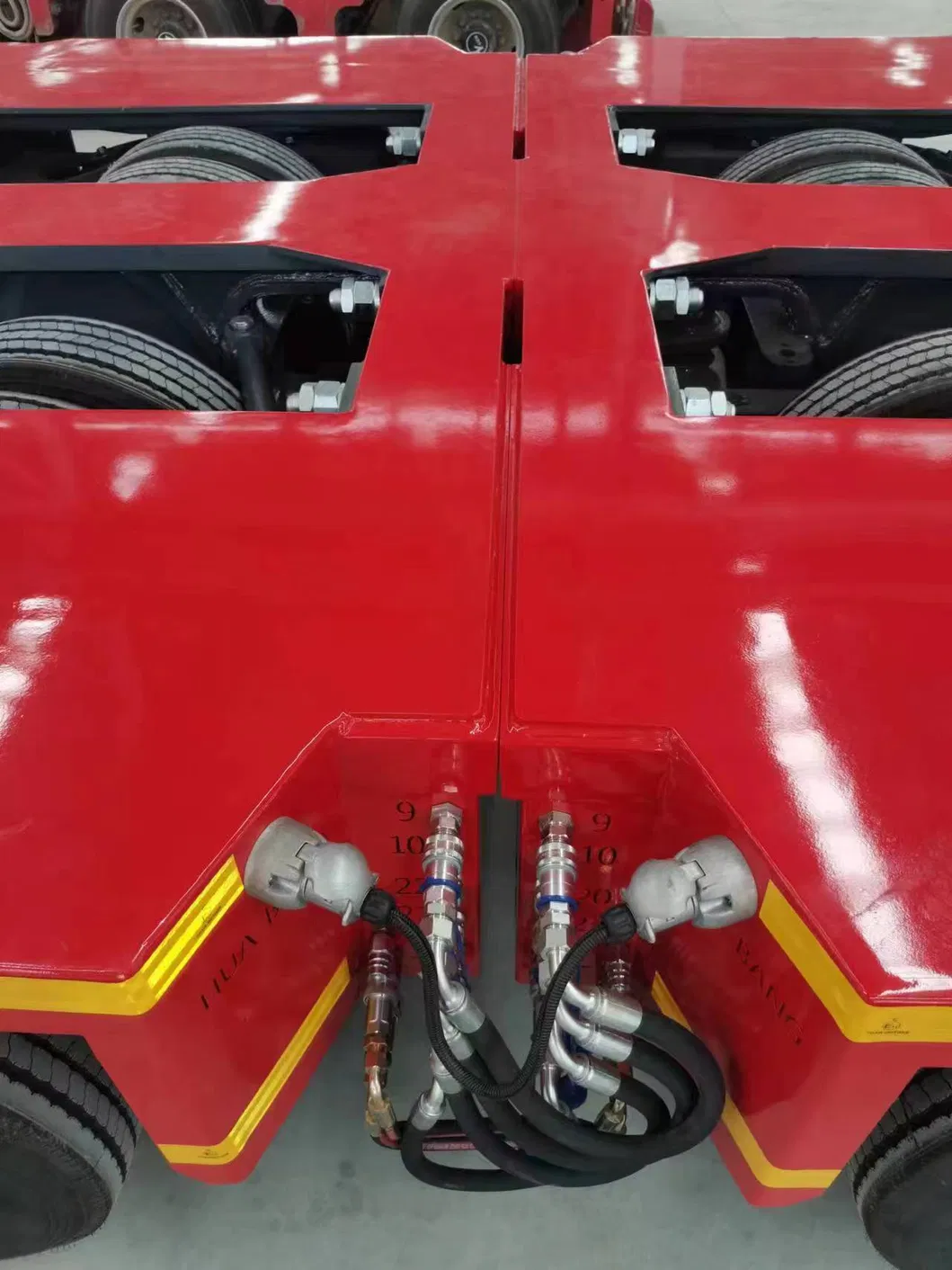

Quick joint connection mode for hydraulic and gas pipelines for fast splicing.
Frequently Asked Questions
What kind of trailers and trucks are available?
We provide a wide range of high-quality modular trailers and heavy-duty trucks manufactured to meet specific oversized transport requirements.
What are the accepted payment terms?
We accept both Telegraphic Transfer (T/T) and Letter of Credit (LC), providing flexibility for international transactions.
What after-sales support do you provide?
We offer comprehensive technical support and provide genuine spare parts to ensure the long-term performance of your equipment.
How are spare parts delivered?
Spare parts are shipped globally through trusted couriers such as DHL, UPS, or FedEx for rapid delivery.
What are the shipping options for heavy equipment?
Orders are shipped via container, flat rack, Roll-on/Roll-off (RoRo) vessels, or bulk carriers depending on the dimensions.
What is the typical delivery timeframe?
Delivery generally ranges from 7 to 60 days following the receipt of the deposit, depending on customization needs.
