Product Description

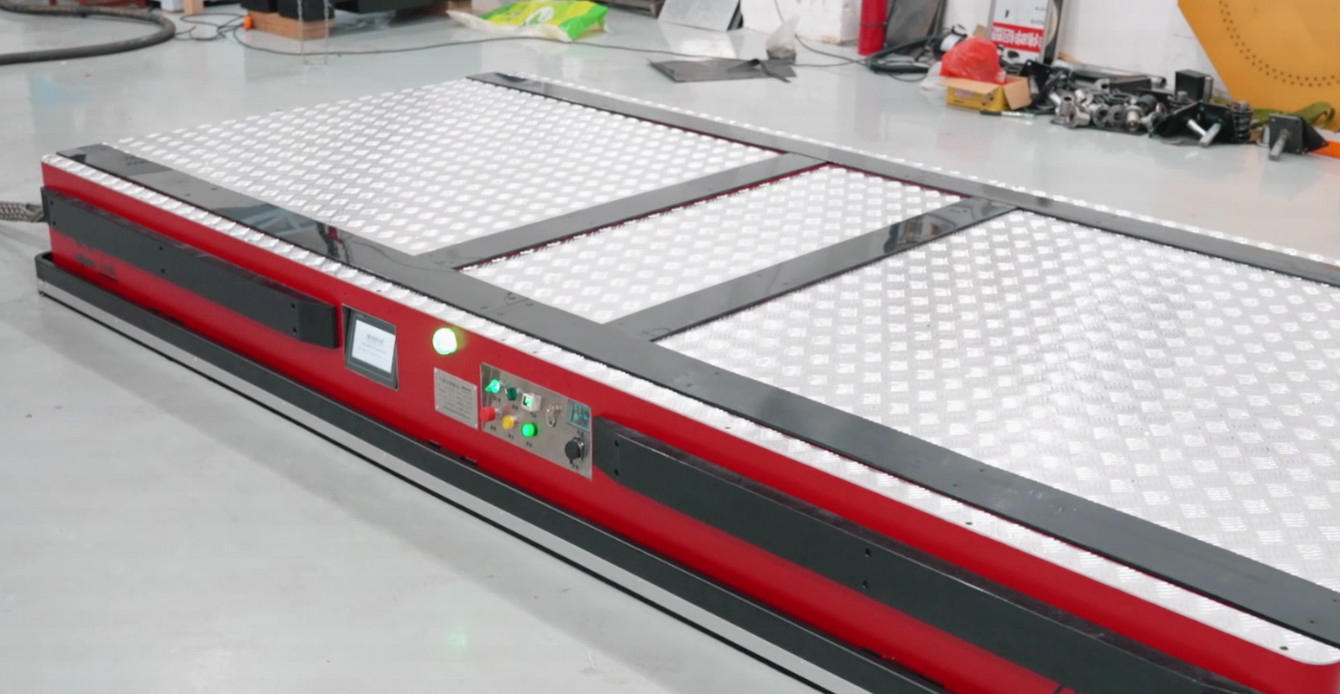

Omni-Directional Movement: Our Finer brand Air Cushion Vehicles are equipped with six steering modes, allowing for omnidirectional movement. This means that the vehicles can move in any direction, including sideways and diagonally, making it an easy Air transport platform to move around obstacles and tight corners.

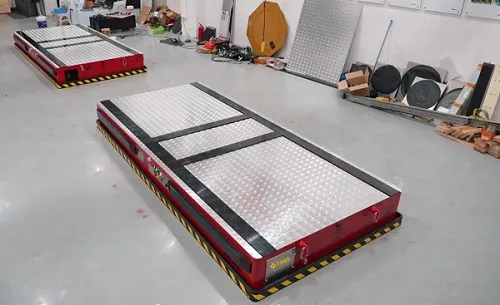

Compact Size and Footprint: Our Finer brand Air transport platform has a compact size and footprint, making them portable and easy to relocate within a facility. They do not require permanent installation and can be utilized in any facility with compressed air.
Inherently Safe: Our Air Cushion Vehicles provide low profile transport, ensuring stability and safety. They eliminate risky rigging operations, reducing the risk of accidents and injuries.
Minimizes Floor Loading: Designed to minimize floor loading, allowing loads to be transported over standard floors without additional site work, protecting expensive epoxy-coated floors.
Easy to Implement: Operates on standard floors like machine-troweled concrete. No complex cranes or conveyors required.
Industry Applications:
- Energy: Ideal for oversized machinery like tanks, casks, turbines, and transformers.
- Aerospace: Facilitates movement of tooling, work stands, satellites, and entire aircraft.
- Manufacturing: Moving heavy components through various production stages.

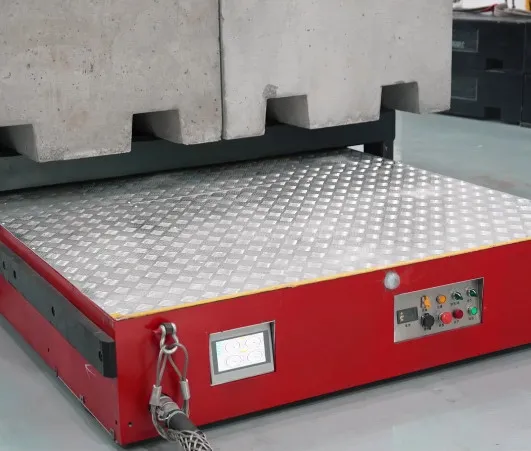

Safety Features
- User-friendly and straightforward operation.
- Multiple emergency stop switches.
- Independent safety relay for E-stop circuits.
- Audible and visual alarms during operation.

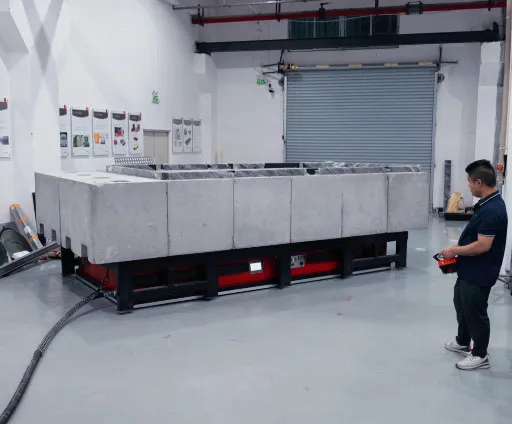

- Radio remote control with 360-degree visibility.
- Advanced suspension drives for surface traction.

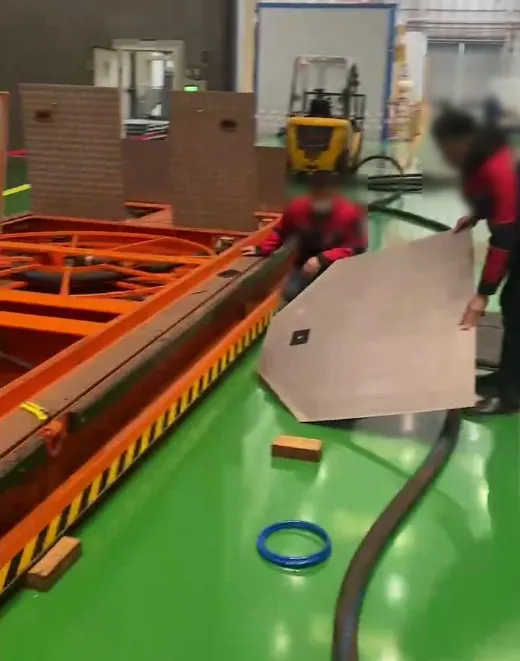

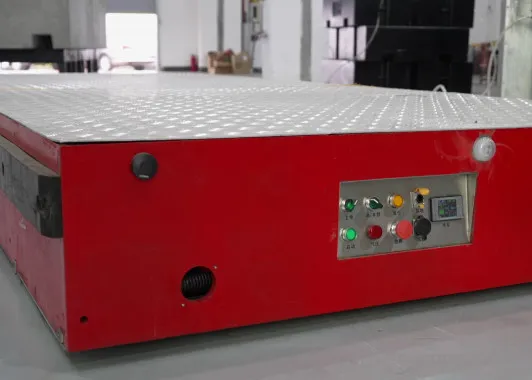

Advanced Technology: Equipped with a state-of-the-art PLC control system and HMI Touchscreen for real-time diagnostics. The system automatically compensates for different load weights and centers.
Why Choose Our Air Cushion Vehicle?
- Cost-Effective: Lower investment compared to drag chains or cranes for heavy load transport.
- Quick Installation: Faster setup time in new or existing facilities.
- Extreme Flexibility: Nine points of freedom, including 360° rotation and side-to-side movement.

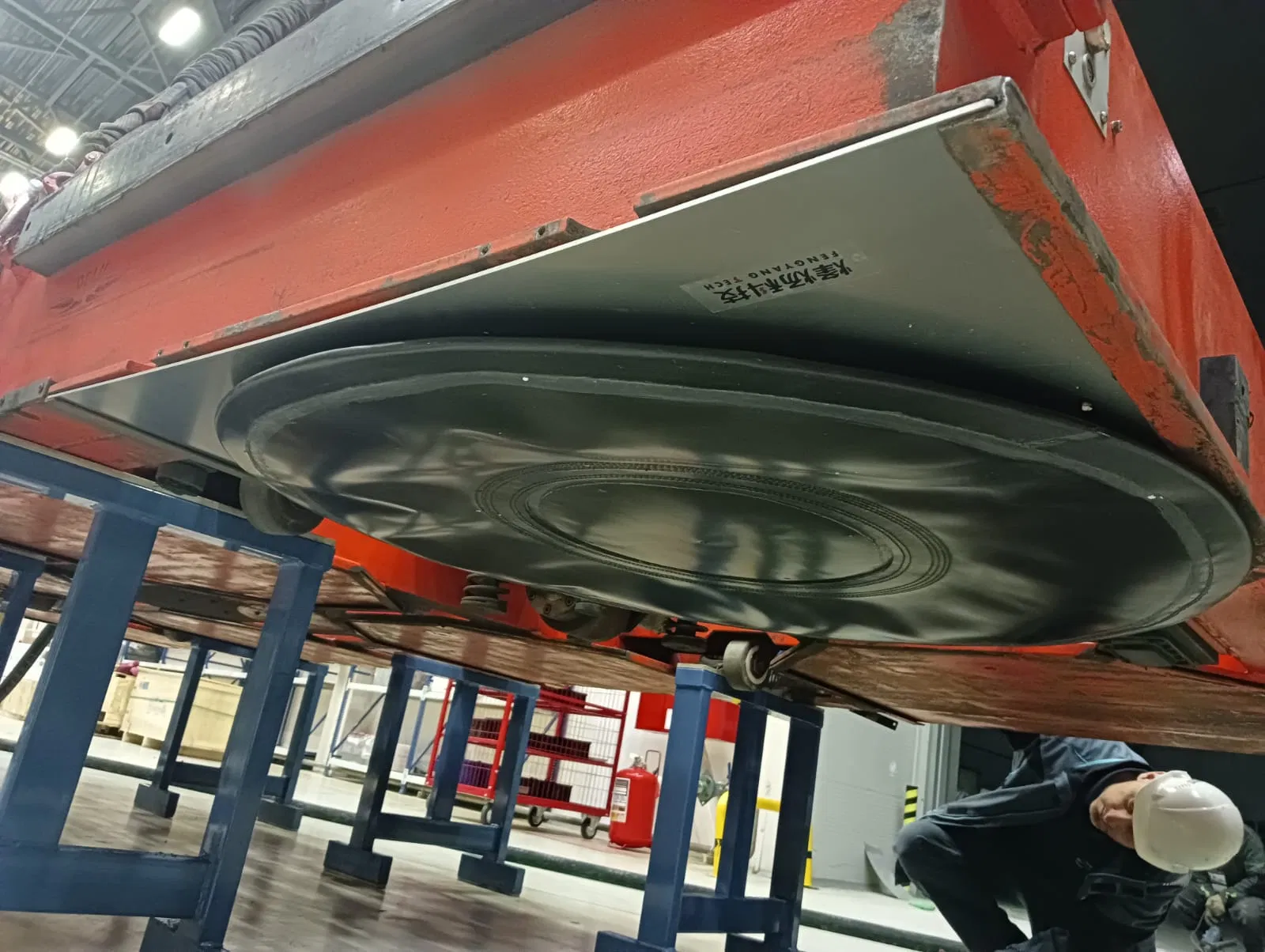

| Serial No. |
Model |
Corresponding DELU Model |
MAX Capacity (KG) |
Max Air Pressure (bar) |

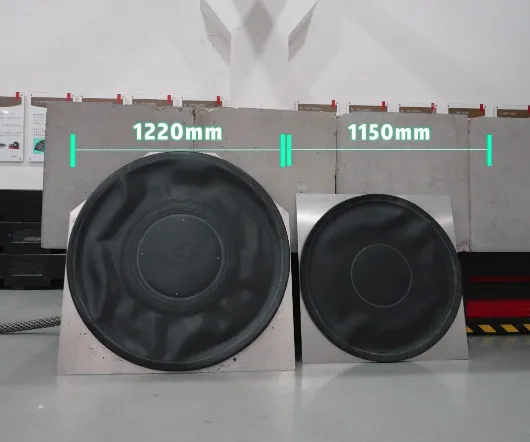

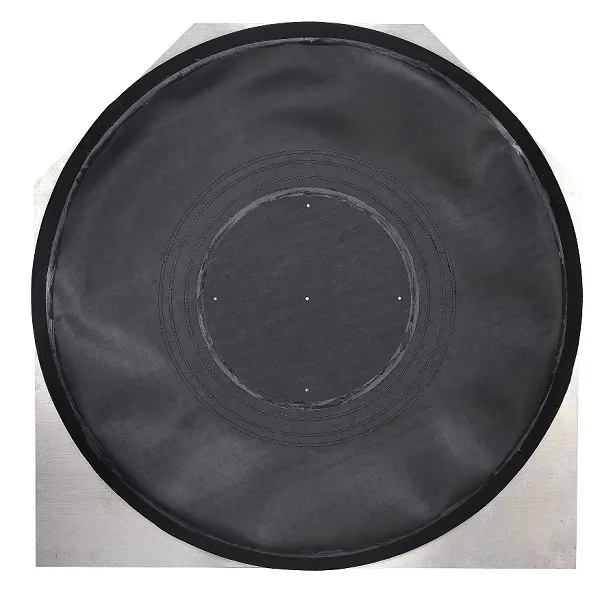

Aluminum Plate Size (mm) |
Thickness (mm) |
Air Intake Diameter |
| 1. | GB450 | 052 LE 4-45 | 5200 | 4.5 | 450 | 15 | 3/4" |
| 2. | GB540 | 072 LE 4-53 | 7200 | 4.5 | 540 | 18 | 3/4" |
| 3. | GB686 | 120 LE 4-68 | 12000 | 4.5 | 686 | 20 | 3/4" |
| 4. | GB750 | 145 LE 4-75 | 14500 | 4.5 | 750 | 25 | 3/4" |
| 5. | GB1020 | 280 LE 4-102 | 28000 | 4.5 | 1020 | 25 | 3/4" |
| 6. | GB1150 | 360 LE 4-115 | 36000 | 4.5 | 1150 | 25 | 3/4" |
| 7. | GB1220 | 400 LE 4-122 | 40000 | 4.5 | 1220 | 25 | 3/4" |
Frequently Asked Questions
What are the primary movement advantages of Air Cushion Vehicles?
Finer brand vehicles feature omnidirectional movement with six steering modes, allowing them to move forward, backward, side-to-side, diagonally, and rotate 360 degrees.
What is the maximum load capacity these systems can handle?
The standard range handles loads from 10 tons to 1000 tons. Vehicles can be operated individually or in tandem to reach higher capacities.
Do these vehicles require special floor installations?
No, they are designed to operate on standard industrial floors, such as machine-troweled and sealed concrete, without the need for rails or permanent conveyors.
What safety features are integrated into the system?
Safety features include multiple emergency stop switches, independent safety relays, audible/visual alarms, radio remote control for 360° visibility, and a low-height load transfer design.
How is the vehicle performance monitored?
The system includes a state-of-the-art PLC control system and an HMI touchscreen LCD panel for advanced diagnostics and maintenance scheduling.
Are custom configurations available?
Yes, additional capacities and specialized configurations such as cleanroom compatibility or explosion-proof features are available upon request.
