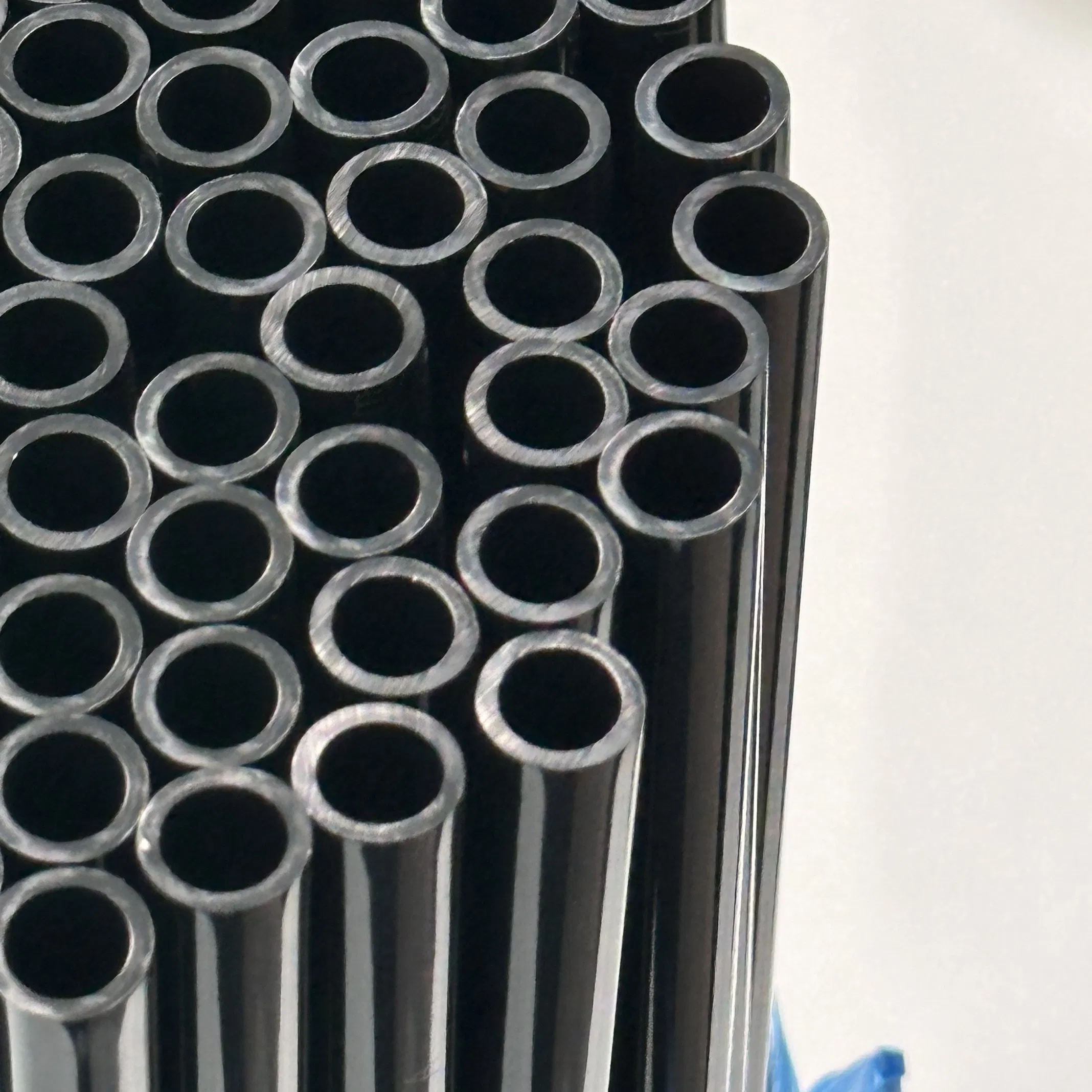

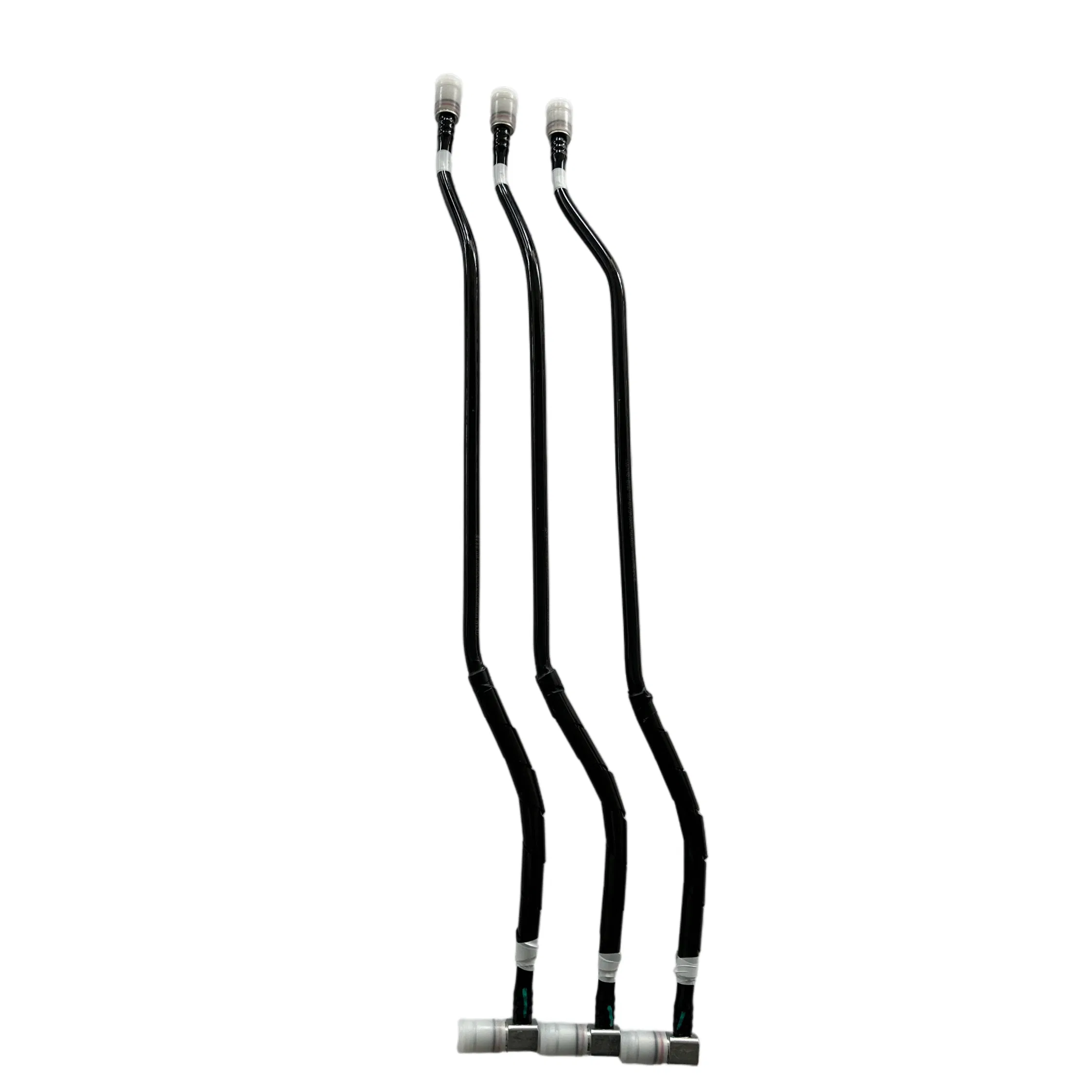

Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
1 / 5
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation
Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation

Original Factory Direct Supply Pneumatic Nylon Tube SAE J844 Aviation Pipelinesuitable Air Brake Pipeline or Fluid Transportation

Send Inquiry

Product Description

Product Overview & Technical Innovation

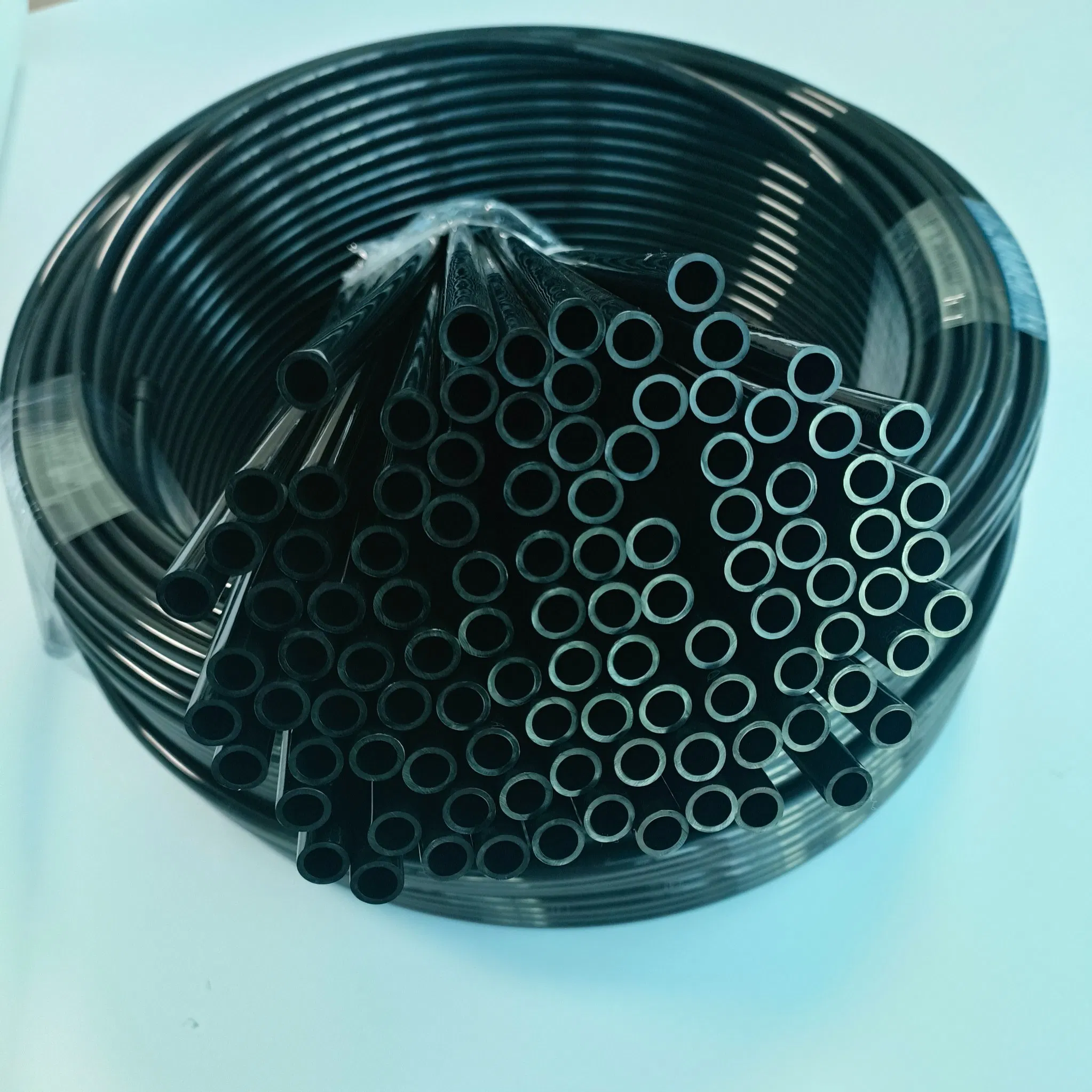

Pneumatic Nylon Tube
🚀
Material Characteristics: Multilayer nylon tubes are crafted from high-performance materials (PA66, PA12), offering lightweight properties, high-temperature resistance, chemical corrosion resistance, and superior impact strength.
⚙️
Technological Advancement: Utilizing Nylon 66 for high durability in aviation and high-speed rail, and Nylon 12 for low-temperature toughness in submarine cables and new energy scenarios.
🚘
Application Fields: Widely used in new energy vehicle fluid pipelines, cooling systems, and battery packaging pipes to meet the demands of modern lightweight thermal management.

Technical Specifications

Product Name Multilayer reinforced nylon pipe (PA12/PA6/PA66) Working Pressure 0.5Mpa-20Mpa (Customizable)
Structure Design Three-layer: Inner (Corrosion-resistant) + Reinforcement (Polyester/Aramid) + Outer (Wear-resistant) Blasting Pressure ≥ 2 times working pressure
Application Scenarios Automotive braking, pneumatic tools, hydraulic systems, industrial fluid transmission Pulse Pressure ≥ 1 million cycles
Inner Diameter (ID) 4mm / 6mm / 8mm / 10mm (Customized) Operating Temp -40ºC ~ +120ºC (Instantaneous up to +150ºC)
Outer Diameter (OD) 8mm / 12mm / 16mm / 20mm Low Temp Resistance -40ºC flexibility, no cracking
Wall Thickness 1.5mm-3.5mm (Multi-layer composite) Medium Resistance Oil, hydraulic oil, weak acid/alkali, ethanol
Bending Radius ≤ 4 OD (Dynamic) / ≤ 2 OD (Static) Connection Type Quick insert, threaded, flange connection

Visual Gallery

Nylon Tube Detail 1
Nylon Tube Detail 2

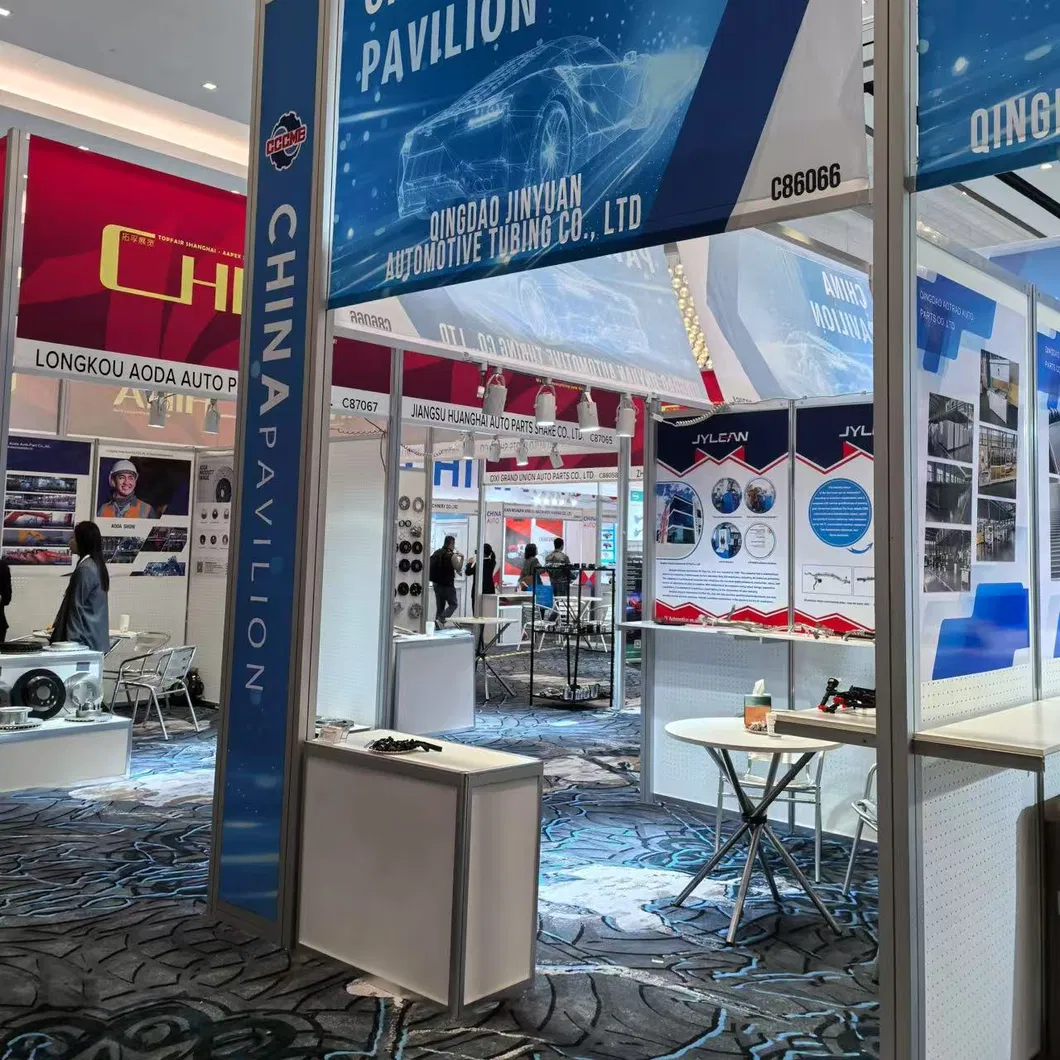

Nylon Tube Detail 3

Manufacturing Capabilities

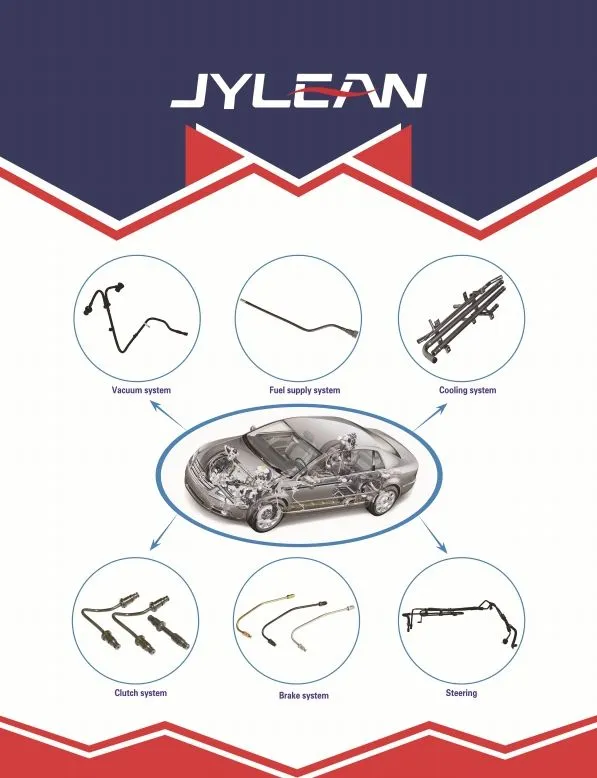

Specializing in automotive pipe assembly research and production with independent design capabilities. Key production lines include:
  • Brake Systems: Hydraulic/Pneumatic brake tubes and hoses, vacuum tubes.
  • Transmission & Steering: Clutch hoses, high-pressure oil pipes, suction and return pipes.
  • Fuel & Cooling: Supply/return oil pipes, carbon tank pipes, cooling water and outlet pipes.
  • Air Intake: Air compressor intake pipes and intercooler pipes.
We provide comprehensive vehicle pipeline solutions for domestic and foreign electric vehicles, motorcycles, and heavy trucks.
Certification 1
Certification 2

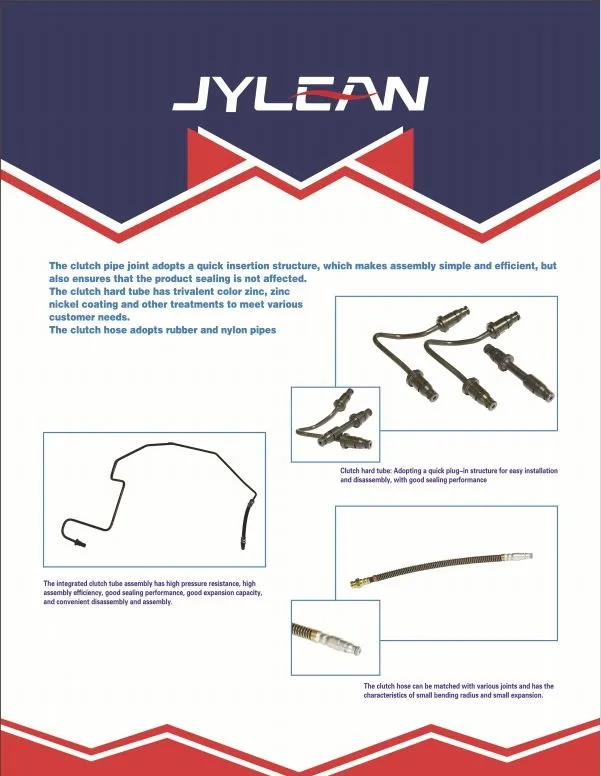

Production 1

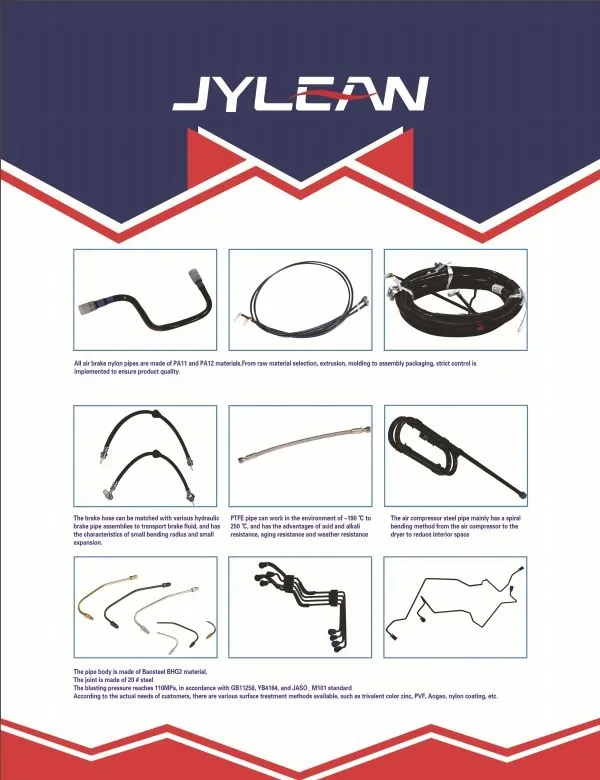

Production 2
Testing 1

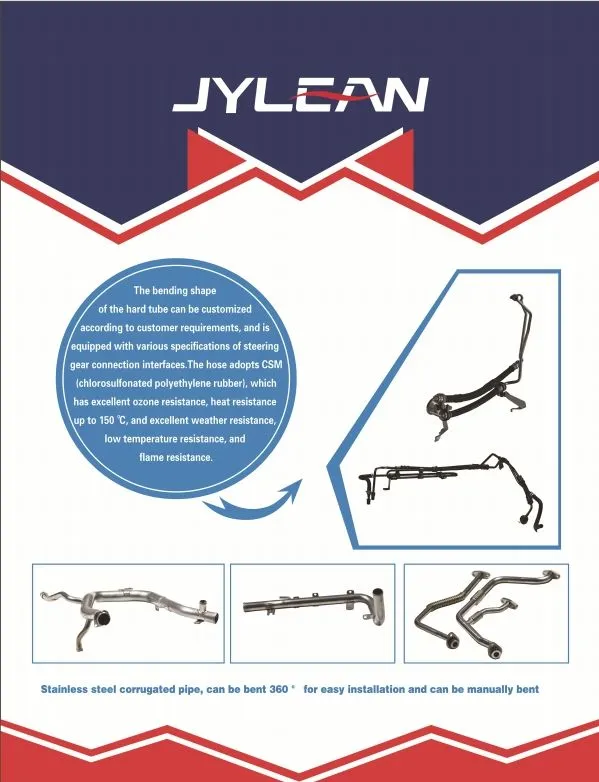

Testing 2
Factory 1

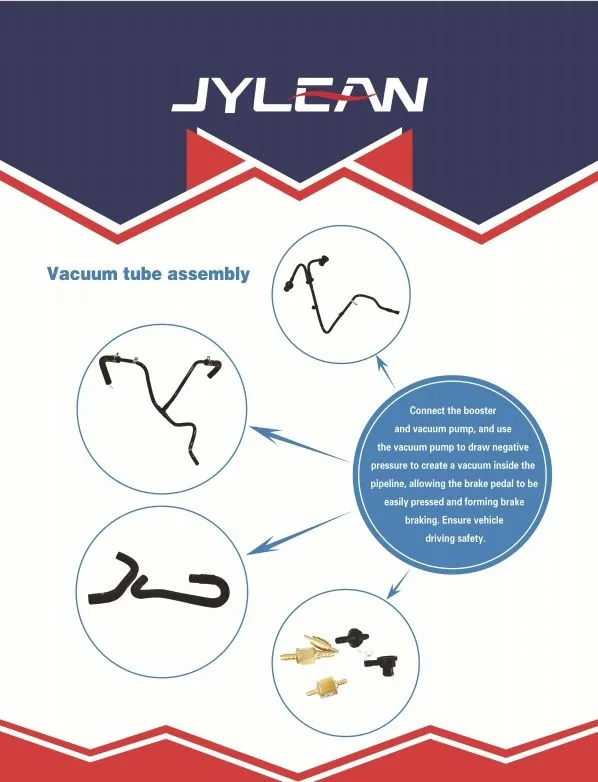

Factory 2

Frequently Asked Questions

What are your manufacturing capabilities for automotive piping?
We are professional manufacturers with over 30 years of experience, specializing in a full range of automotive pipes including brake, clutch, fuel, cooling, and air intake systems.
Can you manufacture products based on custom samples?
Yes, we provide full customization services and can produce pipelines according to your specific samples or technical drawings.
What is the standard lead time for orders?
Generally, the delivery time is approximately 45 days, depending on the specific items and the total order quantity.
How do you ensure the quality of the tubing before delivery?
We implement a strict quality control process, including 100% visual inspections and performance tests (pressure and pulse tests) for every batch before shipment.
What are the typical payment and delivery terms?
We support various delivery terms including FOB, CIF, EXW, and CFR. Standard payment terms involve a 30% deposit via T/T and the remaining 70% before delivery.
Are samples available for quality testing?
Usually, we provide samples free of charge for quality evaluation, though customers are expected to cover the shipping costs.
