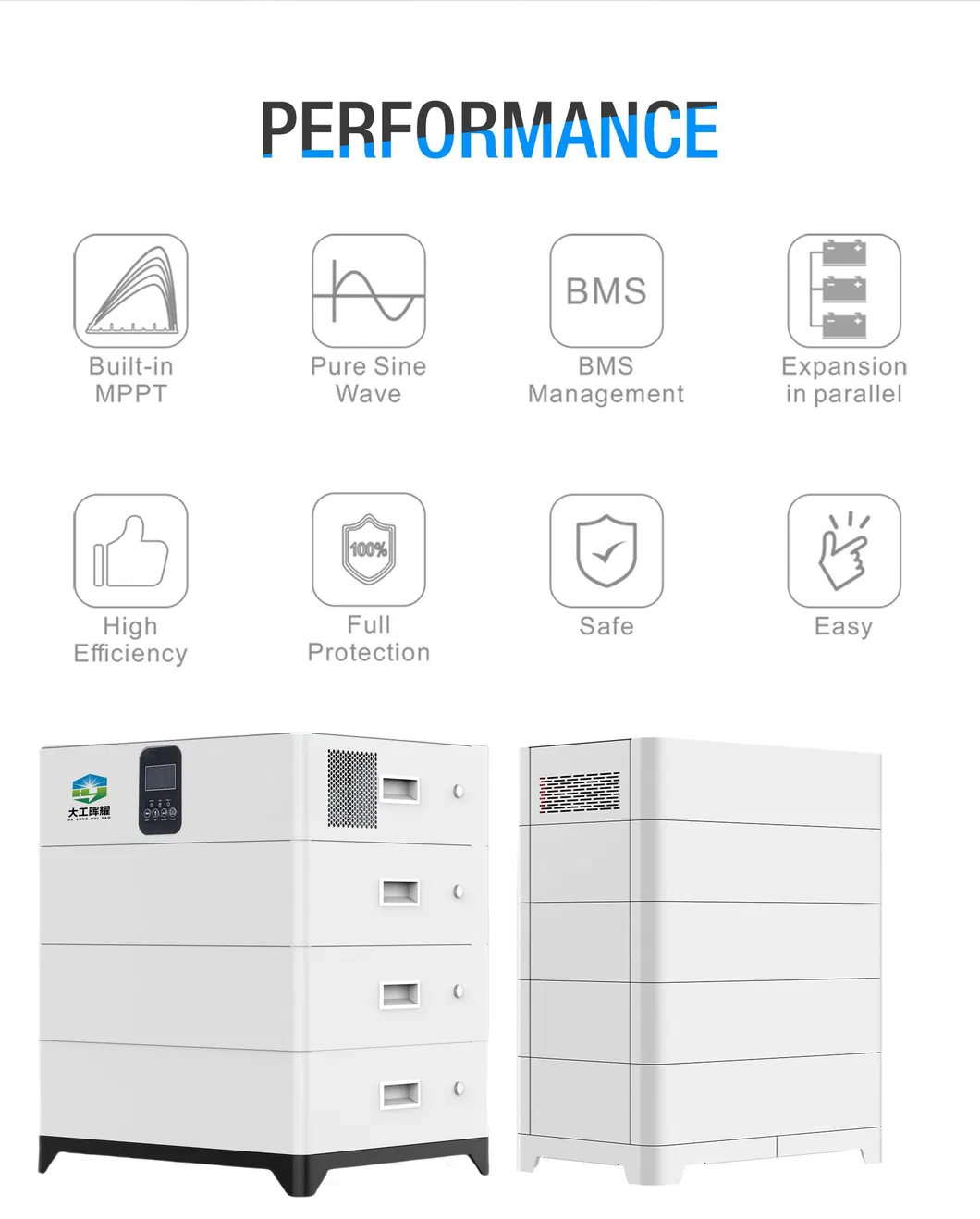

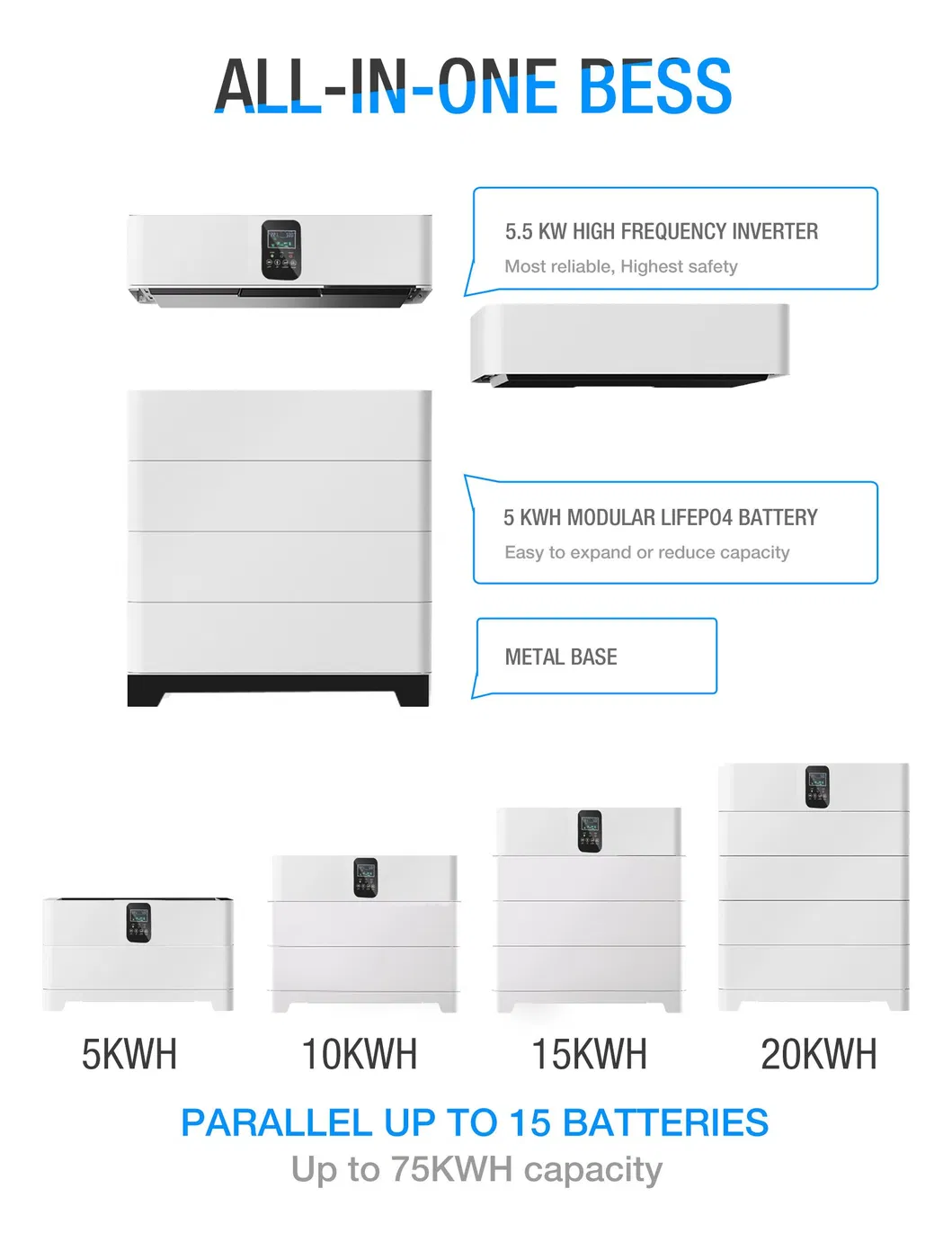

Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Use a modular design to allow users to flexibly adjust battery capacity based on household energy needs.

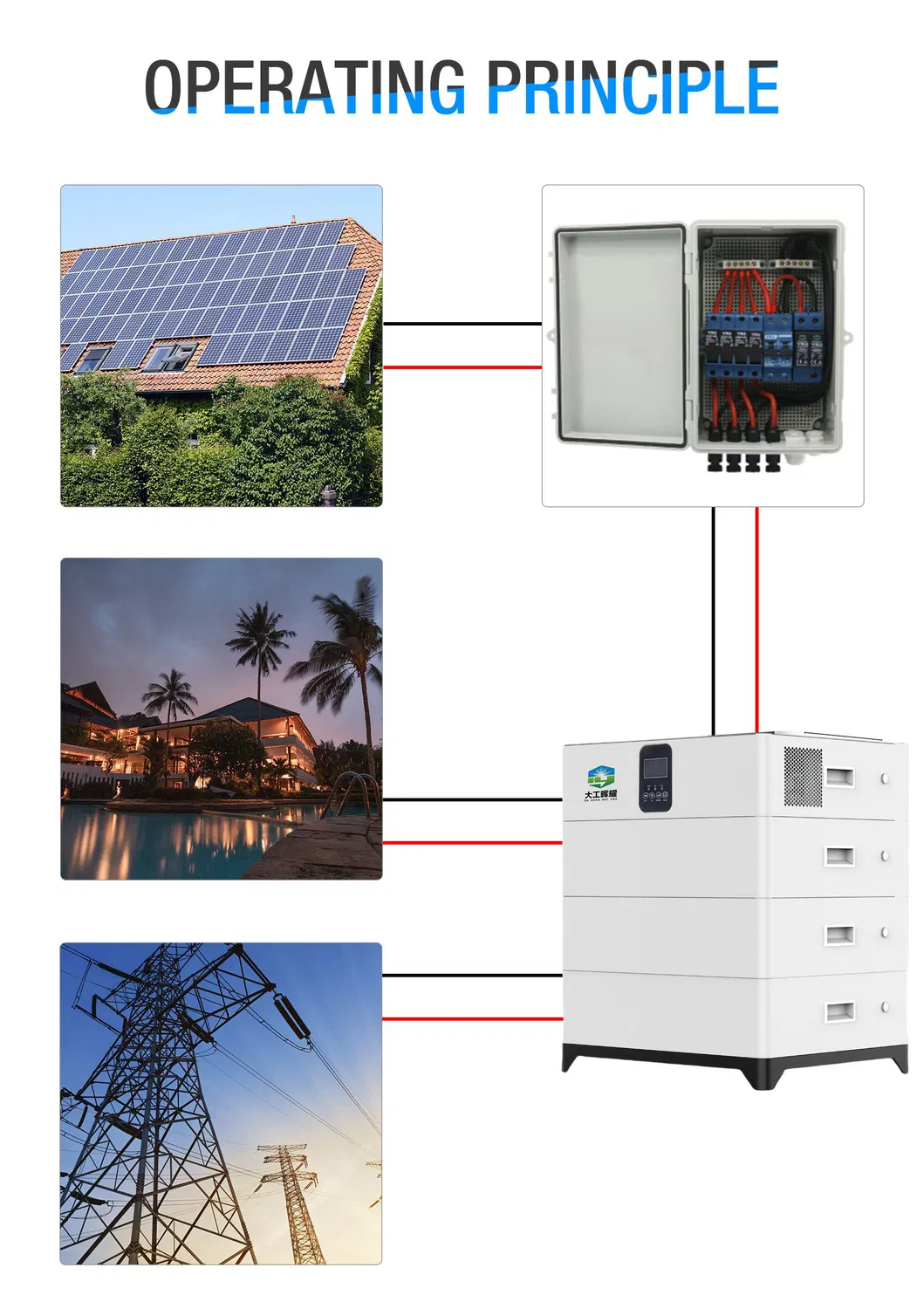

Optimize the integration of the inverter, battery, and BMS to improve space utilization and aesthetics. Employ a compact inverter and efficient cooling solutions to ensure stable operation under high loads. The streamlined exterior design will hide wiring and offer various color and material options to suit different home styles.
Consider using CAN bus or RS485 to enhance anti-interference capabilities, suitable for complex electromagnetic environments. Design interfaces that support multiple communication protocols or allow software upgrades to accommodate new standards.

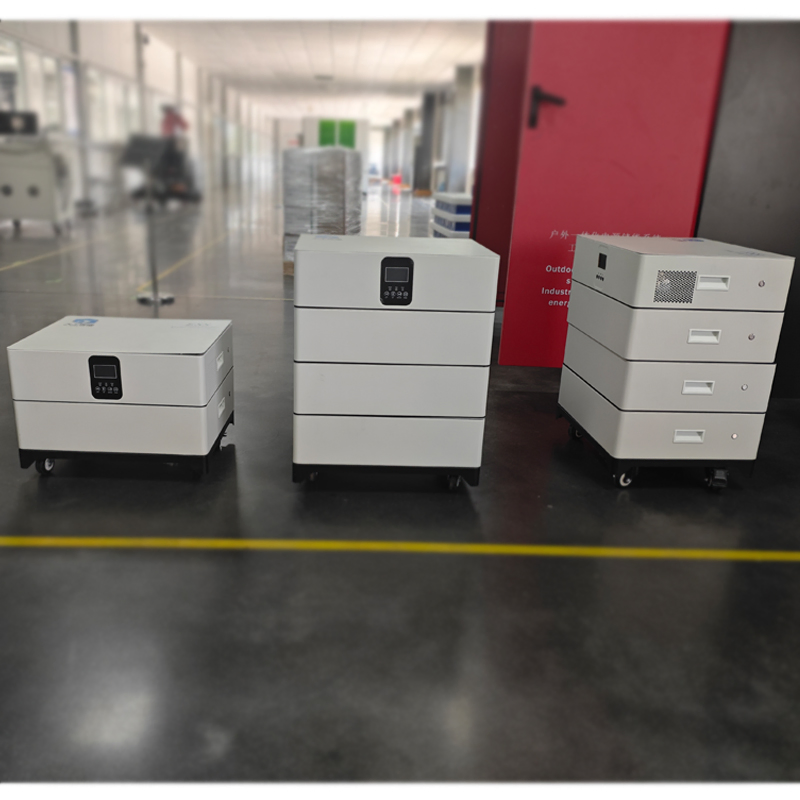

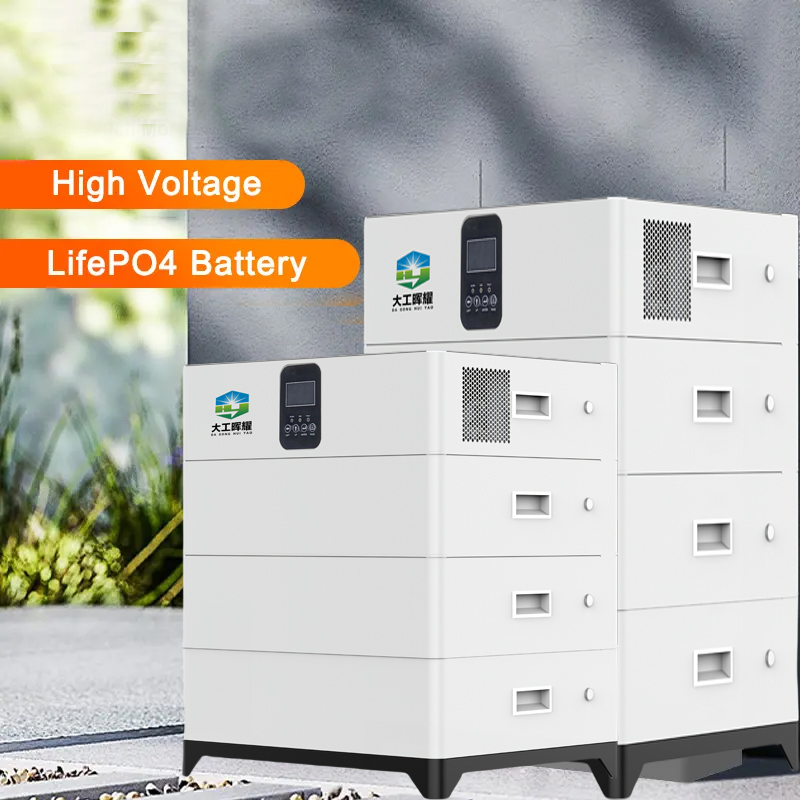

| Battery model | Voltage | Energy | Capacity | Size | Current | Material |
| DHDJ-5000*1 | 51.2V | 100Ah | 5.12kWh | 602*532*215mm | 100A | LiFePO4 |
| DHDJ-5000*2 | 51.2V | 200Ah | 10.24kWh | 602*532*430mm | 100A | LiFePO4 |
| DHDJ-5000*3 | 51.2V | 300Ah | 15.36kWh | 602*532*645mm | 100A | LiFePO4 |
ISO 9001 CE UN38.3 MSDS
We have safe transport certificate for land and sea transport:
Our battery products are packaged using specialized, customs-approved hazardous packaging boxes to ensure compliance with international dangerous goods transportation standards. We hold safety transportation certification for both land and sea transport, proving that our packaging and transportation methods meet relevant laws and regulations. This includes the requirements of the United Nations' "Manual of Tests and Criteria" Part III, Section 38.3, as well as standards for air, rail, road, and water transport.

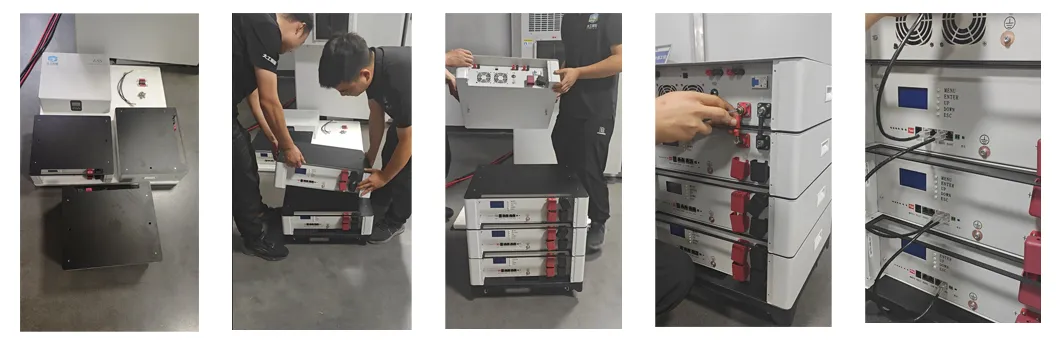

Our battery installation process is designed to be user-friendly. We provide detailed video guidance and remote online video support to ensure a smooth completion:
